BodyCatch
Diagram showing the catch assembly with callout numbers 13 and 14

Catch

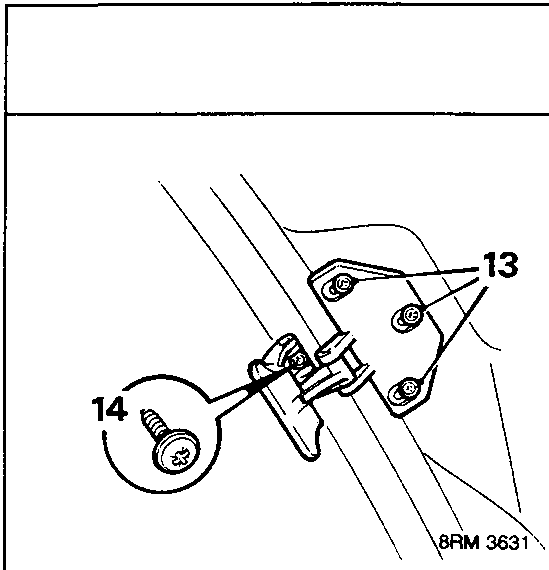

  1. Remove 3 screws, catch to body.
  2. Remove screw, catch to rear quarter light.
Diagram showing the rear quarter light hinge area with callout number 15

Rear quarter light

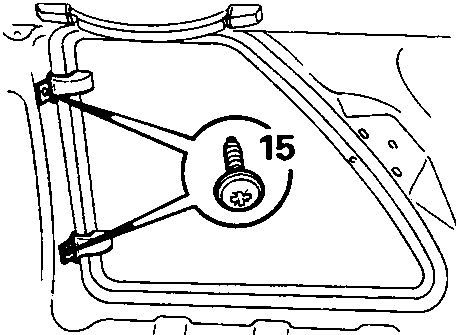

  1. Remove 2 screws, hinges to body.
  2. Remove rear quarter light assembly.

Refit

Catch

  1. Fit catch retainer and sealing washer to glass, align catch to glass and tighten screw.

Rear quarter light

  1. Lightly lubricate the front edge of the quarter light using Non – staining Grease BAU 5812 (Corning No. 7).
  2. Position rear quarter light.
  3. Fit and tighten 2 screws, hinges to body.
  4. Align catch to body and tighten catch screws.
  5. Fit 'B' post upper trim, ensure finisher is correctly located on seal.
  6. Attach belt to upper anchorage point, tighten nut to 25 Nm and fit cover
  7. Fit 'D/E' post trim.
  8. Fit rear lower casing.
  9. Fit rear seat catch striker rubber.
  10. Fit door sealing rubber.
  11. Fit rear seat squab, see Rear seat squab – 200 series.
  12. Fit rear window tray.

REAR QUARTER LIGHT SEAL – 3 DOOR

Service Repair No. 76.81.13

Remove

  1. Remove rear quarter light assembly.
Diagram showing the B post exterior finisher and seal area with callout numbers 2, 3, and 4

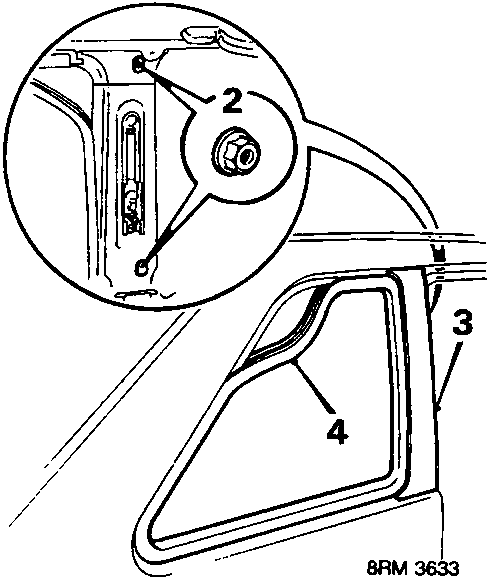

  1. Remove 2 nuts securing 'B' post exterior finisher.
  2. Remove 'B' post exterior finisher.
  3. Remove seal from body flange.
  4. Clean quarter light aperture removing all traces of seal adhesive from flange.

Refit

  1. Clean quarter light aperture with denatured alcohol. Use clean gauze to wipe off surfaces when dry.
  2. Remove backing tape from quarter light seal adhesive.
  3. Position seal, carefully align and press corners into place and then remainder of seal.

CAUTION: Do not use force or hammer the seal carrier in to place.

  1. Fit 'B' post exterior finisher.
  2. Fit rear quarter light assembly.
