Remove

Service Repair No. 76.81.20

Note: The following equipment is required:
Sharp knife or cutting wire and handles.
Windscreen repair kit.
Sealer applicator gun.
Suction cup lifter.
Leak test equipment.

Remove

1. Remove rear quarter finisher.

4 door

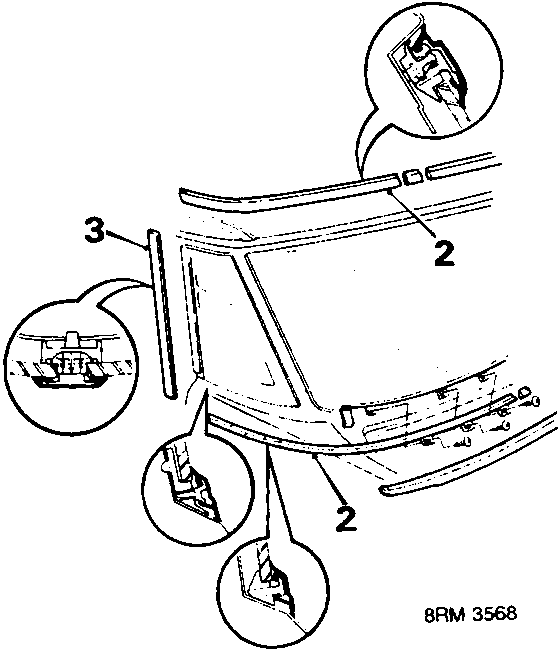

2. Release upper and lower mouldings along length of quarter glass.
3. Remove side moulding from between quarter glass and rear glass.

5 door

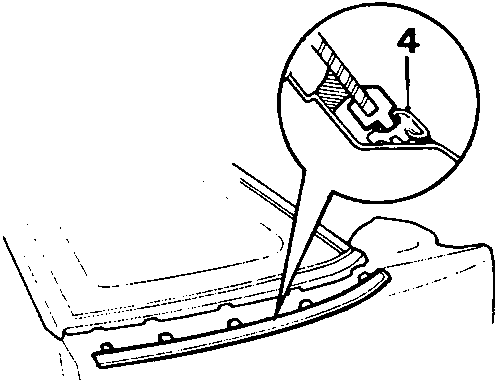

4. Remove rear quarter lower moulding.

All models

5. Attach suction cup to glass.

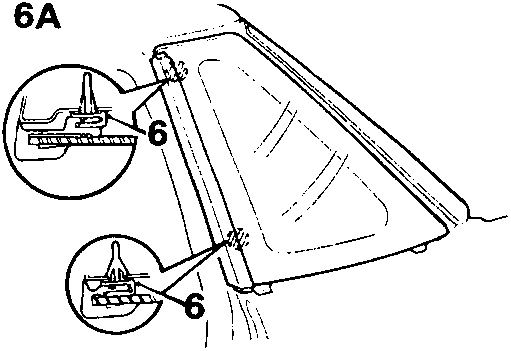

6. Use a knife from inside, insert knife through sealer at centre front and work down and round, cutting through clips as indicated:
   A – 4 door = 2 clips at front.

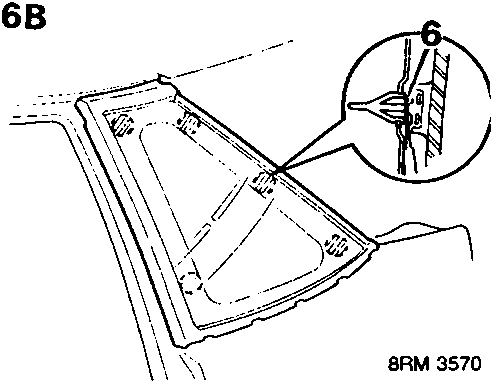

   B – 5 door = 5 clips.
   Alternatively use cutting wire:
   Apply masking tape to body edge at top and bottom of glass. Cut round glass starting at front and use a knife to cut through clips.
7. Retain glass as sealer is cut free and remove rear quarter glass.
8. Extract clip ends from body panel.
