Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Screens › Remove
BodyRemove

Service Repair No. Rear quarter light 76.81.24
Service Repair No. Catch 76.81.30

Note: The rear quarter light is supplied complete with both hinges and catch. The catch can be obtained separately.

Remove

  1. Remove rear window tray.
  2. Fold rear seat cushion forward and remove rear seat squab, see Rear seat squab – 200 Series.
Rear seat catch striker rubber component labeled 3
  1. Remove rear seat catch striker rubber.

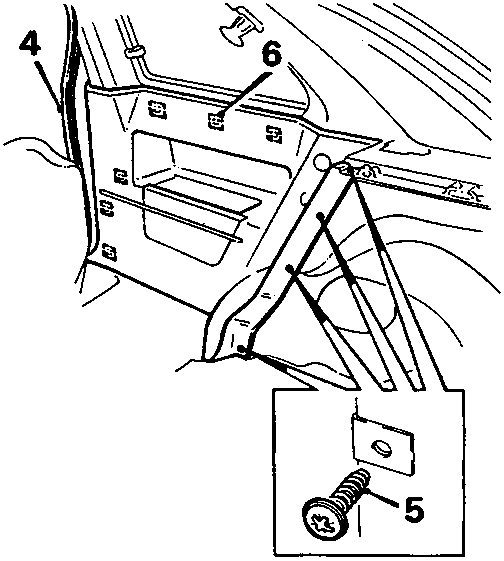

Lower trim casing and door sealing rubber area showing components 4, 5, and 6
  1. Release door sealing rubber from 'B' post.
  2. Remove 4 screws securing lower trim casing to luggage compartment carpet.
  3. Release lower trim casing from panel and position aside.

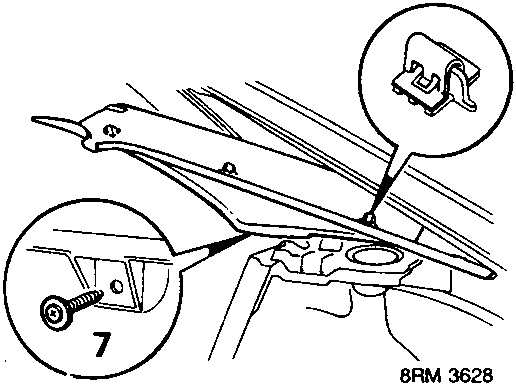

'D/E' post trim release mechanism showing screw labeled 7
  1. Remove screw and release 'D/E' post trim.

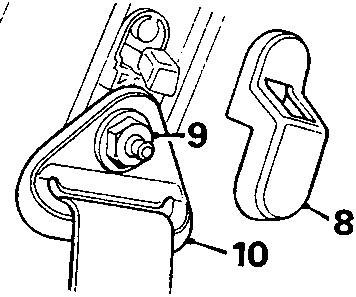

Front seat belt upper anchorage showing cover 8, nut 9, and seat belt 10
  1. Release cover from front seat belt upper anchorage.
  2. Remove nut, seat belt to anchorage.
  3. Remove seat belt from upper anchorage.

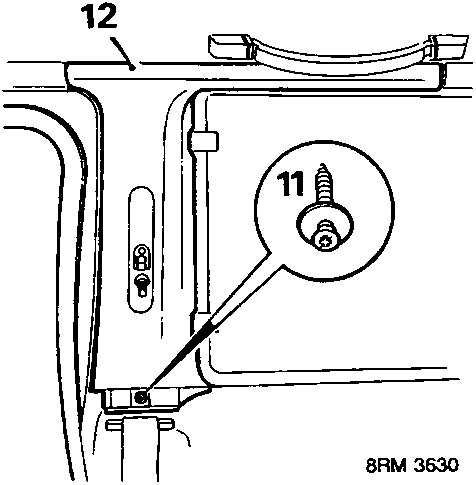

'B' post upper trim showing scrivets 11 and 12
  1. Remove scrivet securing 'B' post upper trim.
  2. Remove upper trim from 'B' post.
