Rear window – coupe

14. Fit cheater panel.
15. Fit door glass seal to 'B' post.
16. Test quarter light for leaks and apply additional sealer as necessary.

CAUTION: If water is used for leak check, allow to dry fully before applying additional sealer.

17. Fit rear quarter upper trim.

CAUTION: A curing time of 6 hours is desirable, during this time, leave a window open and do not slam the doors. If the car must be used, drive slowly.

REAR WINDOW – COUPE

Service Repair No. 76.81.01

Note: The following equipment is required:
Sharp knife.
Cutting wire and handles.
Suction lifters.
Windscreen repair kit.
Sealer applicator gun.

WARNING: Wear protective gloves when handling glass, solvents and primers.

Remove

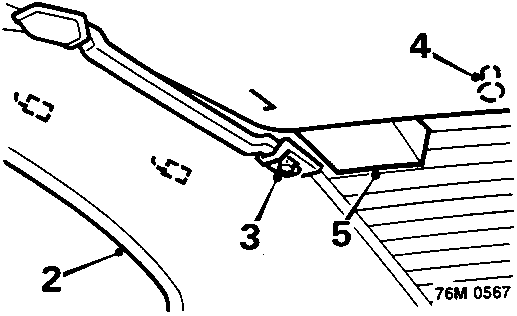

1. Remove rear shelf trim.

2. Release rear end of both rear quarter upper trims from body clips.
3. Remove covers from rearmost grab handle fixings and slacken screws.
4. Disengage 2 studs securing rear of headlining to roof.
5. Insert foam packing to hold rear quarter upper trims and headlining clear of rear window.

6. Remove rear wiper arm, see WIPERS & WASHERS – Repairs.

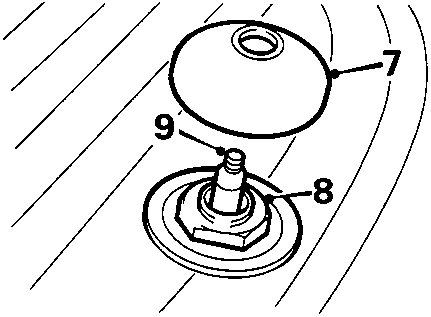

7. Prise cover from wiper motor spindle.
8. Remove nut, plain washer and sealing washer from motor boss.
9. Push boss down over motor until clear of glass.
10. Open luggage compartment lid.

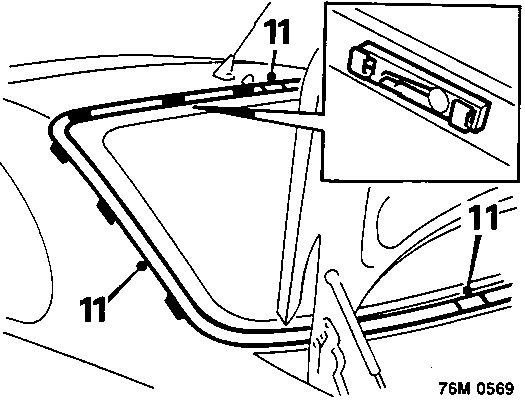

11. Slide joint clips on window finishers to one side, release each finisher from 10 clips and remove finishers.

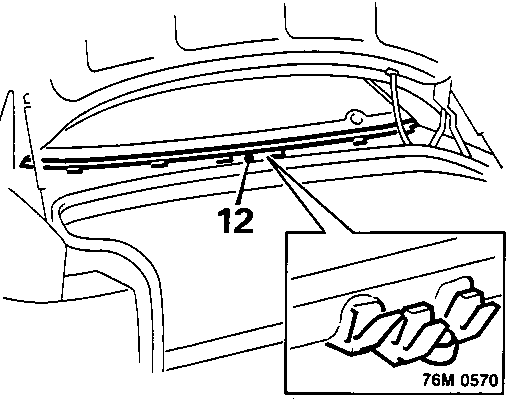

12. Release 6 clips and remove boot flip seal.
