Refit

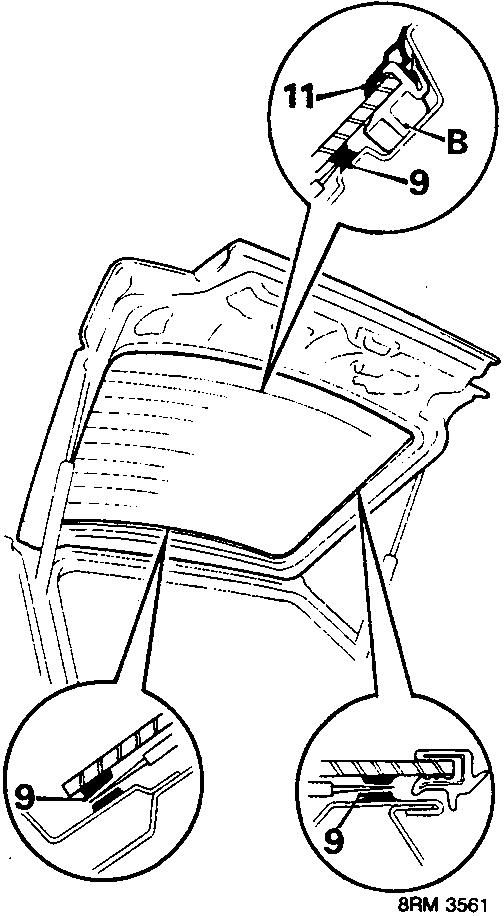

9. Open door. Use a sharp knife to cut through sealer all round glass from inside of taildoor. Alternatively: Protect paintwork and use cutting wire along top edge.
10. Attach suction cups and lift glass from taildoor.
11. Remove lower moulding from glass and remove 6 clips B.

Refit

1. Carefully cut old sealer on body flange to obtain a smooth surface 2 mm thick. Remove old dam from flange without damaging paint surface.
2. Original glass: Carefully cut back old sealer to obtain a smooth finish without damaging obscured surface. Remove old dam material from glass. Do not remove lower and side mouldings.

CAUTION: Lay glass on felt covered supports, do not stand on edge. Any chipping of glass edge may develop into cracks.

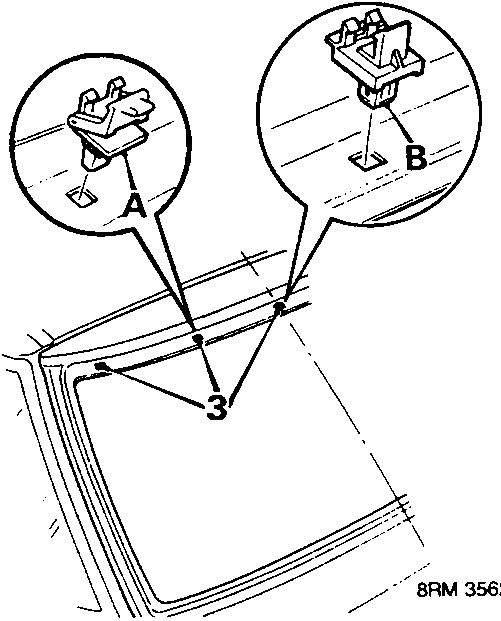

3. Fit 4 holders A and central holder B to top flange.

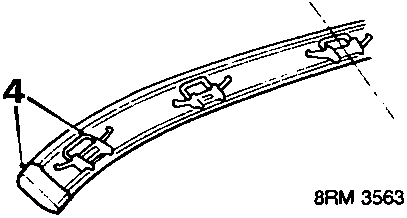

4. Attach moulding clips and end clips to upper moulding.

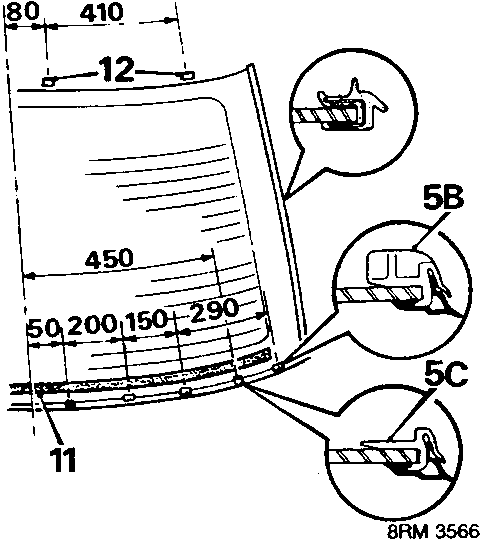

5. Fit lower moulding to new glass with 6 clips B and 4 clips C positioned as shown.
6. Attach suction cups, locate top of glass against holders and then lay in position on door flange. Carefully centre on flange, apply tape from glass to body at all sides and cut tape at glass or moulding edge for fitting reference. Remove glass from car.
7. Apply cleaning solvent to door flange. Wipe with clean gauze.
8. Apply cleaning solvent around edge of glass. Wipe with clean gauze.
