Refit

Refit

Note: The replacement taildoor glass is supplied with the taildoor spoiler, seal and wiper motor grommet already fitted.

1. Carefully cut old sealer on body flange to obtain a smooth surface 2 mm thick.
2. Original glass: Carefully cut back old sealer to obtain a smooth finish without damaging obscured surface.

CAUTION: Lay glass on felt covered supports, do not stand on edge. Any chipping of glass edge may develop into cracks.

3. Attach suction cups to rear screen.
4. Apply cleaning solvent to taildoor flange. Wipe with clean gauze.
5. Apply cleaning solvent around edge of glass. Wipe with clean gauze.

DO NOT TOUCH CLEANED OR PRIMED SURFACES WITH FINGERS.

6. Shake primer tins for 30 seconds. Apply Body Primer to sealing surface on taildoor flange and to any bare metal.

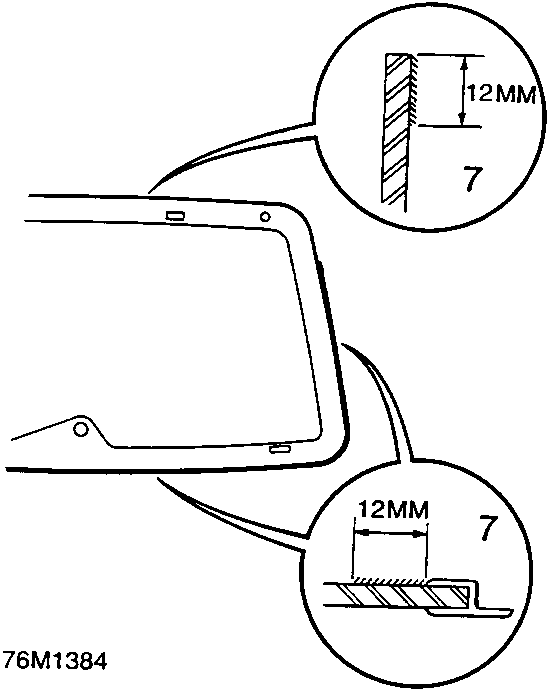

7. Apply Glass Primer around glass as shown. Use clean gauze to wipe off primed surfaces when dry.

CAUTION: Do not mix primer sponges. Keep primed surfaces clean.

8. Fit pre - cut nozzle to sealer cartridge, remove lid and shake out crystals and install in applicator gun.
