Refit (page 2 of 2)

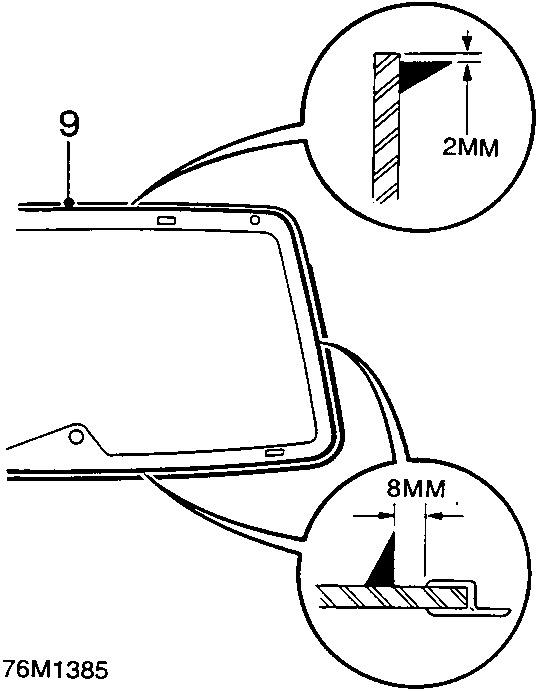

9. Apply a continuous bead of sealer around edge of glass as shown.

Note: Make bead slightly thicker at corners.

10. Open a front door window.

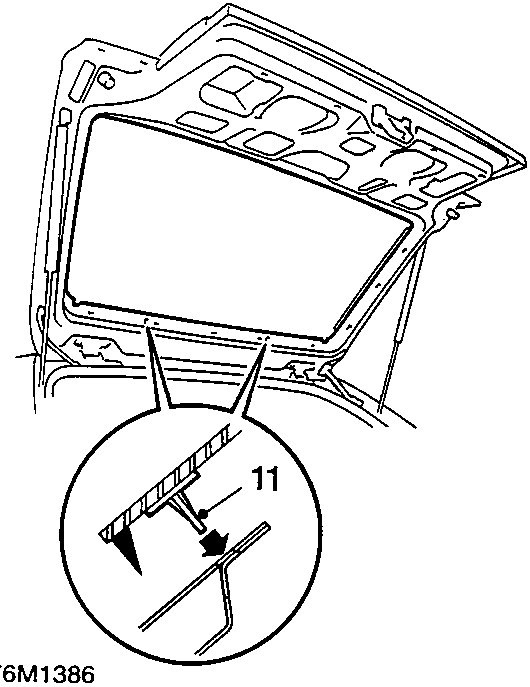

11. With assistant: Lift glass and locate on holders, carefully align to aperture and lower onto flange. Lightly press glass to fully seat on sealer.
12. Remove protective coverings and tapes.
13. Remove excess sealer with a knife and wipe from glass with solvent.
14. Test sealer for leaks, apply additional sealer as necessary.
    If water is used, allow sealer to dry. Spray water around glass and check for leaks. Mark any area that leaks, dry glass and sealant then apply additional sealer.

CAUTION: A curing time of 6 hours is desirable, during this time leave a window open and do not slam the doors. If the car must be used, drive slowly.

15. Use solvent to clean any sealant from paintwork. Use clean gauze to wipe off surfaces when dry.
16. Connect lucars to rear screen demister.
17. Align taildoor upper trim finisher to screen and secure to taildoor.
18. Fit taildoor trim pad, see Taildoor trim pad – Tourer.
19. Fit luggage compartment cover.
20. Fit rear wiper arm, see WIPERS & WASHERS – Repairs.
