Taildoor glass

18. Remove excess sealer with a knife and wipe from glass with solvent.
19. Test sealer for leaks, apply additional sealer as necessary. If water is used, allow sealer to dry. Spray water around glass and check for leaks. Mark any area that leaks. Dry glass and sealer then apply additional sealer.

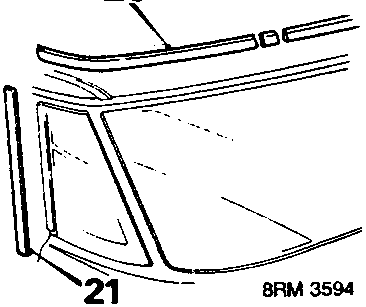

20. Fit upper mouldings and moulding joint.
21. Fit left and right – hand side mouldings

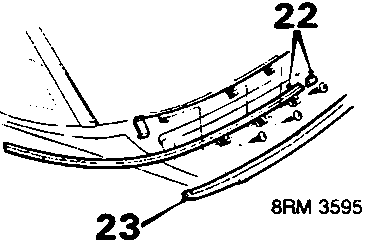

22. Fit lower mouldings and moulding joint.
23. Fit lower cover.
24. Connect leads to heated rear window.
25. Fit rear quarter finishers.
26. Fit rear window shelf.
27. Fit luggage compartment lid, see BODY – Repairs.

CAUTION: A curing time of 6 hours is desirable, during this time leave a window open and do not slam the doors. If the car must be used, drive slowly.

TAILDOOR GLASS

Service Repair No. 76.81.10

Note: The following equipment is required:

Sharp knife.

Windscreen repair kit.

Sealer applicator gun.

Suction cup lifters.

Leak test equipment.

WARNING: Wear protective gloves when handling glass and when handling solvents and primers.

Remove

1. Remove rear wiper arm, see WIPERS & WASHERS – Repairs.
2. Disconnect parcel tray lifting straps, remove screws and 2 anchorages.
3. Remove parcel tray.
4. Remove taildoor trim pad, see Taildoor trim pad.
5. Disconnect 2 leads from demister panel.

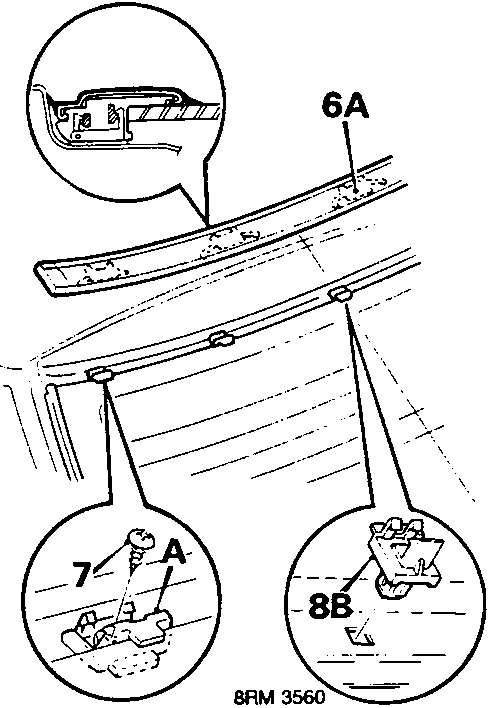

6. Close door.Lift end of upper moulding, disengage 2 end clips and 5 moulding clips A and remove upper moulding.
7. Remove screws and lift 4 holders A from top of glass
8. Remove central holder B from top of glass.
