Refit (page 2 of 2)

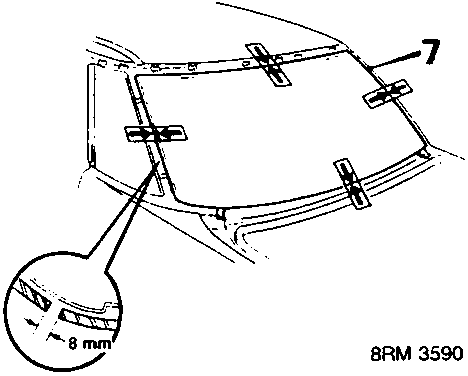

7. Attach suction cups to glass, locate glass on stopper brackets and then lay in position on the flange. Carefully centre on flange, apply tape from glass to body at each side and cut tape at glass edge for fitting reference. Remove glass from car. 8. Apply cleaning solvent to 20 mm strip around glass and to body flange.

CAUTION: Do not touch cleaned or primed surfaces with fingers.

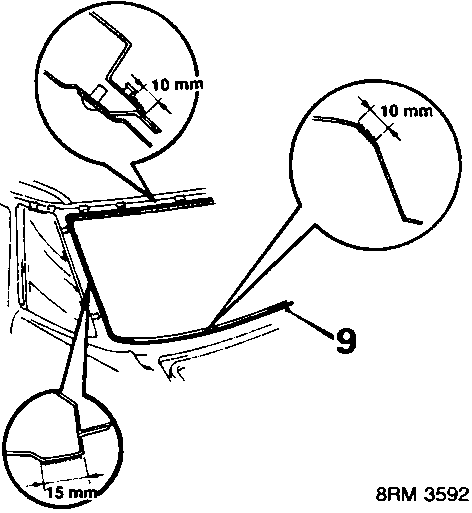

9. Shake primer tins for 30 seconds. Apply Body Primer to body flange as shown.

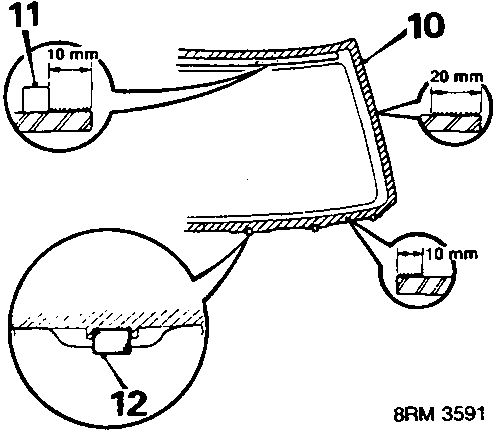

10. Apply Glass Primer around glass as shown. Use clean gauze to wipe off primed surfaces when dry.

CAUTION: Use a new sponge for each primer.

11. Fit upper dam 10 mm from top edge of glass. 12. Fit 6 spacers to bottom edge of glass as shown. 13. Fit pre – cut nozzle to sealer cartridge, remove lid and shake out crystals and install in applicator gun.

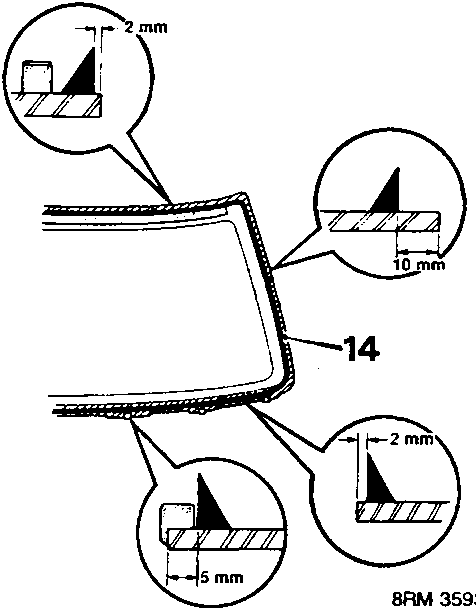

14. Apply a continuous bead of sealer around edge of glass as shown.

Note: Make bead slightly thicker at each corner.

15. Open a front door window. 16. With an assistant: Lift glass and locate on stopper brackets, carefully align to tapes and lower onto flange. Ensure gap each side of glass is equal (approx. 8 mm) and then lightly press glass to fully seat sealer. 17. Remove protective coverings and tapes.
