Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Screens › Remove
BodyRemove

Service Repair No. 76.81.01

Note: The following equipment is required:
Cutting wire and handles.
Windscreen repair kit.
Sealer applicator gun.
Suction cup lifters.
Leak test equipment.

Remove

  1. Open bonnet
  2. Remove wiper arms, see WIPERS & WASHERS – Repairs.

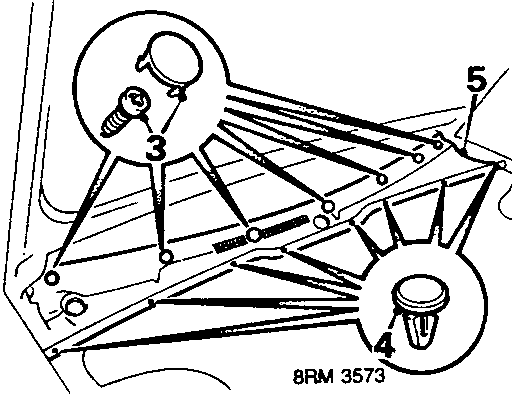

Diagram showing plenum air intake with numbered callouts 3, 4, 5
  1. Remove 7 caps and screws securing plenum air intake.
  2. Release 8 clips retaining seal and front of plenum air intake.
  3. Remove seal and plenum air intake.

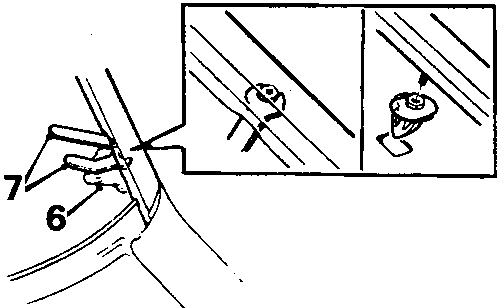

Diagram showing clips and blade at the edge of the windscreen with callouts 6, 7
Diagram showing side moulding with callout 8
  1. Protect glass surface, glass to be refitted.
  2. Insert a blade under moulding at each clip position and use a thin 10 mm spanner to turn 4 clips 90° clockwise.
  3. Ease clips from slots and remove each side moulding.

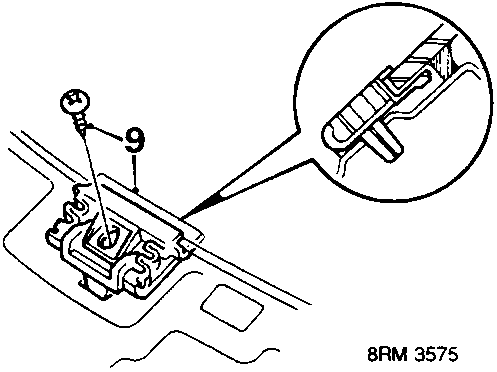

Diagram showing bracket removal with callout 9
  1. Remove screws, ease 2 brackets out of body and from under bottom edge of glass.
  2. Close bonnet.
  3. Remove interior mirror by pushing upwards to disengage from base. Remove stickers to be attached to new glass.

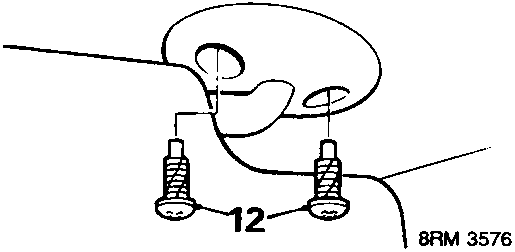

Diagram showing sun visor mounting with callout 12
  1. Remove 4 screws and remove 2 sun visors.

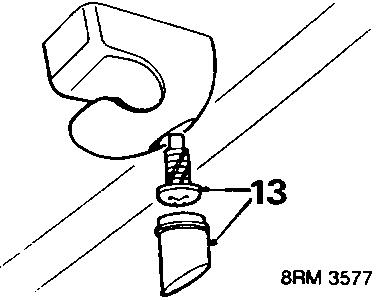

Diagram showing sun visor retaining clip with callout 13
  1. Remove plug and screw and remove 2 sun visor retaining clips, to allow front edge of headlining to be lowered slightly.
