Screens › Remove
BodyRemove

Service Repair No. 76.81.01

Note: The following equipment is required:
Cutting wire and handles.
Windscreen repair kit.
Sealer applicator gun.
Suction cup lifters.
Leak test equipment.

Remove

  1. Remove luggage compartment lid, see BODY – Repairs.
  2. Remove rear window shelf.
  3. Remove both rear quarter finishers.
  4. Disconnect 2 leads from heated rear window.

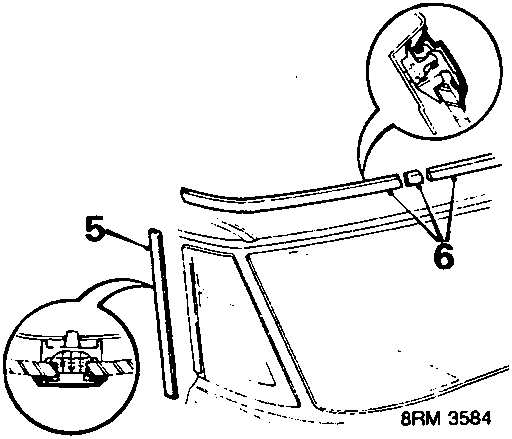

Diagram showing removal of side and upper mouldings with callout numbers 5 and 6
  1. Detach 5 clips each side and remove 2 side mouldings.
  2. Remove joint clip, detach 6 clips each side and remove 2 upper mouldings.

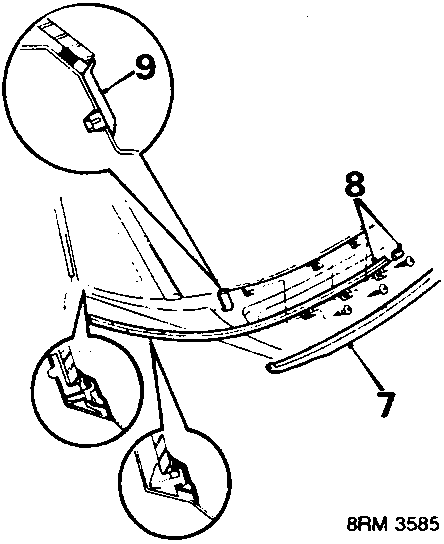

Diagram showing removal of lower moulding cover and stopper brackets with callout numbers 7, 8, and 9
  1. Remove lower moulding cover retained by 6 clips.
  2. Remove 3 screws and detach 2 clips each side, remove lower mouldings and joint clip.
  3. Remove 2 stopper brackets.
  4. Release rear finisher to allow headlining to be lowered away from window.

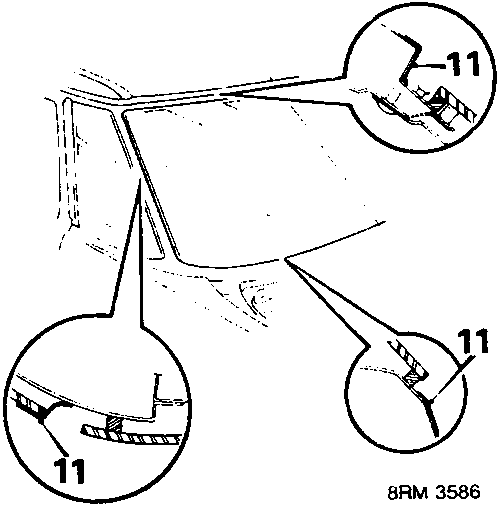

Diagram showing fitting of protective tape on body and glass with callout number 11
  1. Fit protective tape, to body above and below glass and to rear quarter glass.
