Refit (page 2 of 2)

DO NOT TOUCH CLEANED OR PRIMED SURFACES WITH FINGERS.

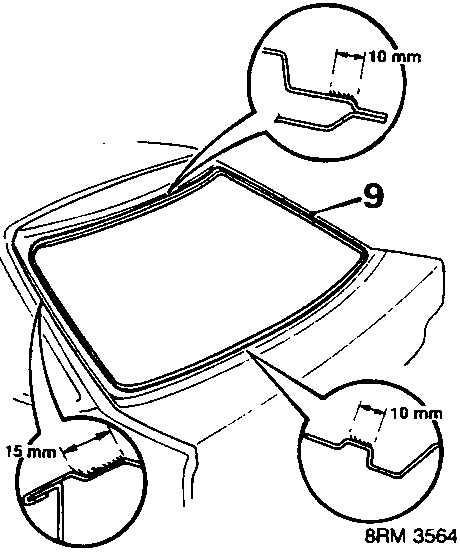

9. Shake primer tins for 30 seconds. Apply Body Primer to body flange as shown.

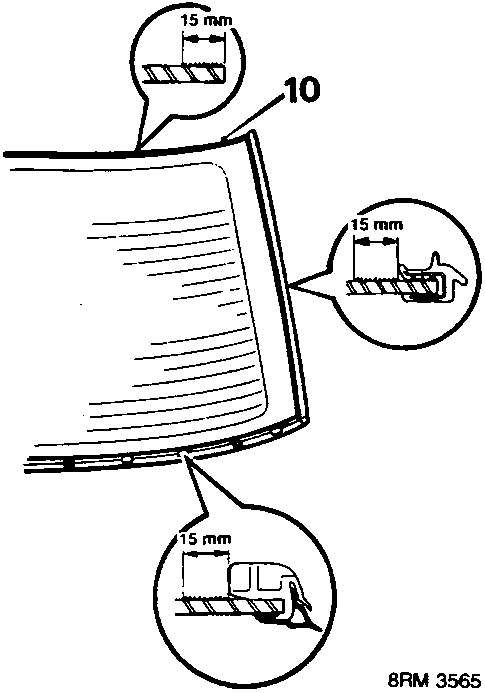

10. Apply Glass Primer around glass as shown. Use clean gauze to wipe off primed surfaces when dry.

CAUTION: Do not mix primer sponges. Keep primed surfaces clean.

11. Fit lower dam 36 mm from edge of glass.
12. Fit 4 spacers to align with holders at top edge of glass as shown.
13. Fit pre – cut nozzle to sealer cartridge, remove lid and shake out crystals and install in applicator gun.

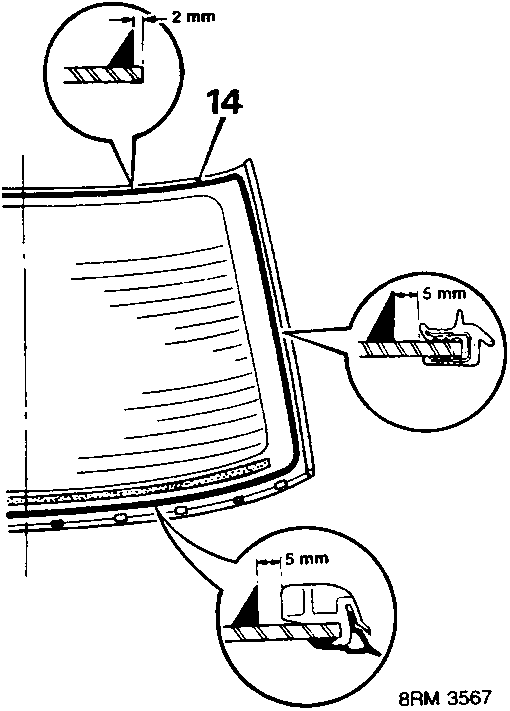

14. Apply a continuous bead of sealer around edge of glass as shown.

Note: Make bead slightly thicker at corners.

15. Open a front door window.
16. With assistant: Lift glass and locate on holders, carefully align to tapes and lower onto flange. Lightly press glass to fully seat on sealer.
17. Remove protective coverings and tapes.
18. Remove excess sealer with a knife and wipe from glass with solvent.
19. Test sealer for leaks, apply additional sealer as necessary.

If a water is used, allow sealer to dry. Spray water around glass and check for leaks. Mark any area that leaks, dry glass and sealant then apply additional sealer.

20. Align clips and fit upper moulding, press to engage clips.

CAUTION: A curing time of 6 hours is desirable, during this time leave a window open and do not slam the doors. If the car must be used, drive slowly.
