Repairs › Alloy inlet manifold
Engine 1.4 K8Alloy inlet manifold

Alloy inlet manifold

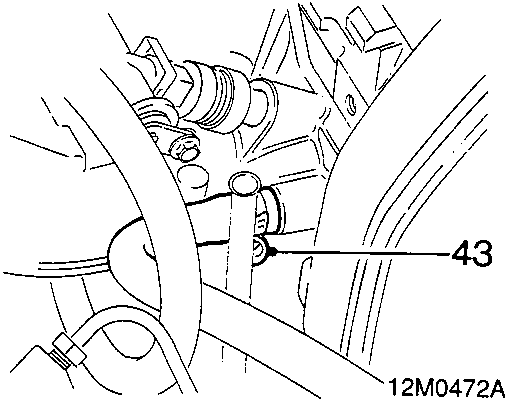

Diagram showing clip and expansion tank hose connection point on alloy inlet manifold, callout 43
  1. Slacken clip, disconnect expansion tank hose from inlet manifold.

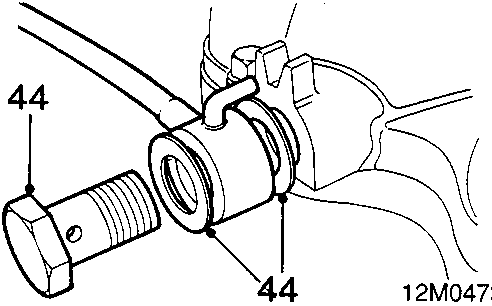

Diagram showing banjo bolt and sealing washers connecting brake servo hose to manifold, callouts 44
  1. Remove banjo bolt and 2 sealing washers, disconnect brake servo hose from manifold, discard sealing washers.

Plastic inlet manifold

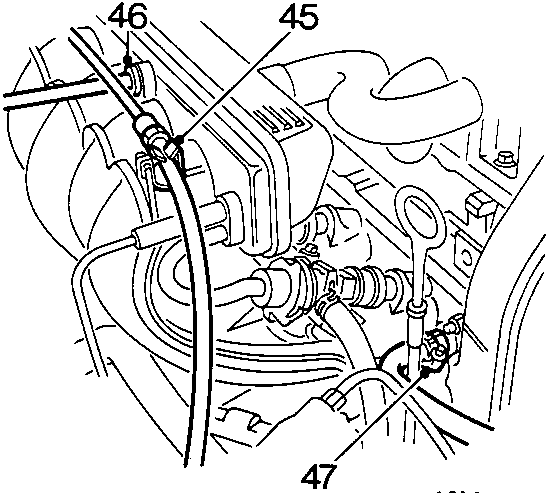

Diagram showing throttle cable clip, quick fit connector, and expansion tank hose on plastic inlet manifold, callouts 45, 46, 47
  1. Release throttle cable from clip.
  2. Depress plastic collar to release quick fit connector and disconnect brake servo hose from inlet manifold.
  3. Slacken clip, disconnect expansion tank hose from inlet manifold.

Alloy and plastic inlet manifold

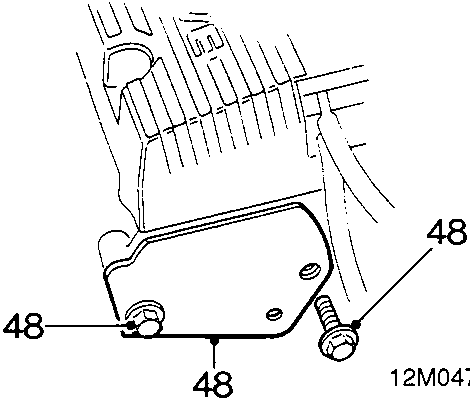

Diagram showing bolts and camshaft rear cover plate on cylinder head for K16 engine, callout 48
  1. K16: Remove 2 bolts and camshaft rear cover plate from cylinder head.

K16 illustrated

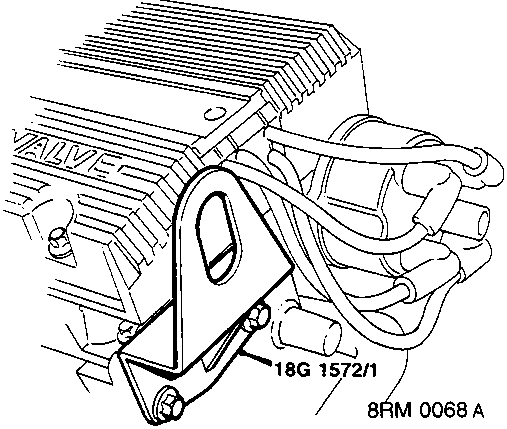

Diagram showing lifting bracket tool 18G 1572/1 fitted to cylinder head
  1. Fit lifting bracket tool 18G 1572/1 to cylinder head, tighten to 9 Nm.

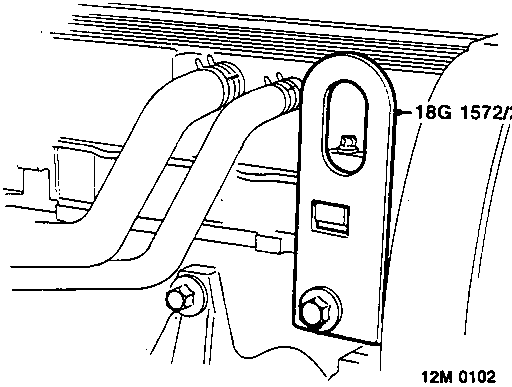

Diagram showing lifting bracket tool 18G 1572/2 fitted to cylinder head above dipstick tube
  1. Fit lifting bracket tool 18G 1572/2 to cylinder head above dipstick tube, tighten to 9 Nm.
