Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual04 · Engine 1.4 K8
04 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Engine 1.4 K8Remove

Service Repair No. Exhaust – 12.13.07
Service Repair No. Inlet – 12.13.08

Remove

  1. Disconnect battery earth lead.

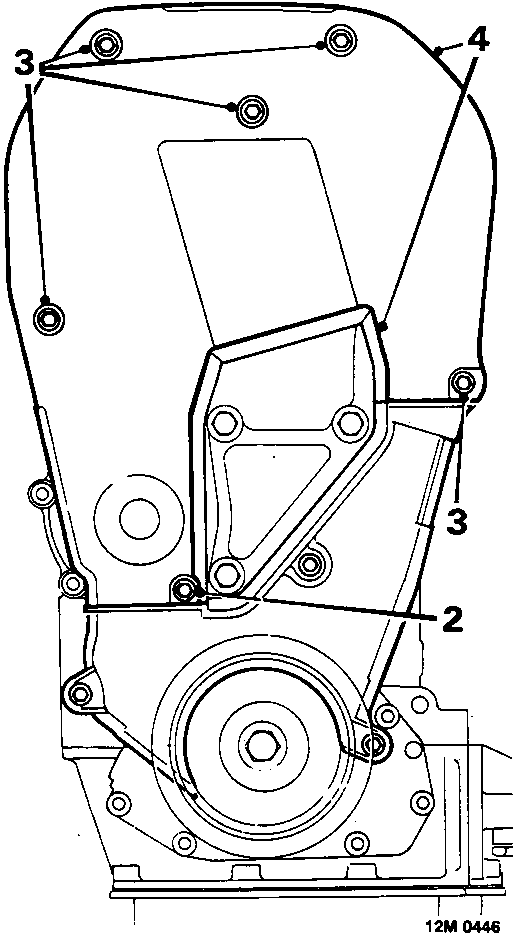

Diagram showing the timing belt upper front cover with callout numbers 2, 3, and 4
  1. Slacken lower fixing screw, timing belt upper front cover.
  2. Remove 5 bolts, timing belt upper front cover.
  3. Remove timing belt upper front cover and seal.

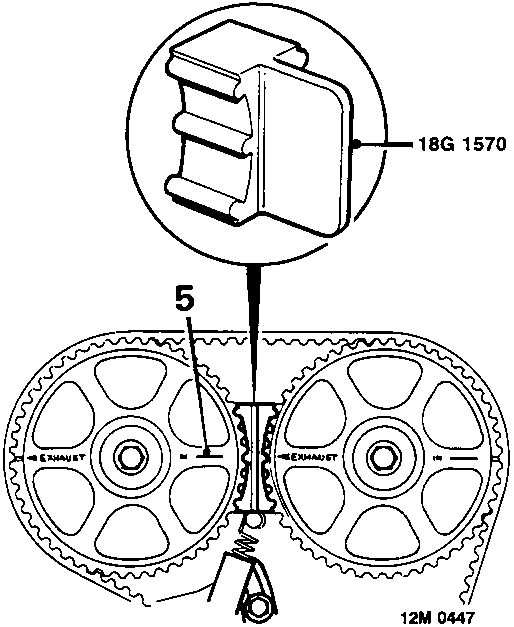

Diagram showing camshaft locking tool 18G 1570 fitted between camshaft gears with callout number 5
  1. Rotate crankshaft to align camshaft gear timing marks – 90° B.T.D.C.
  2. Fit camshaft locking tool 18G 1570.

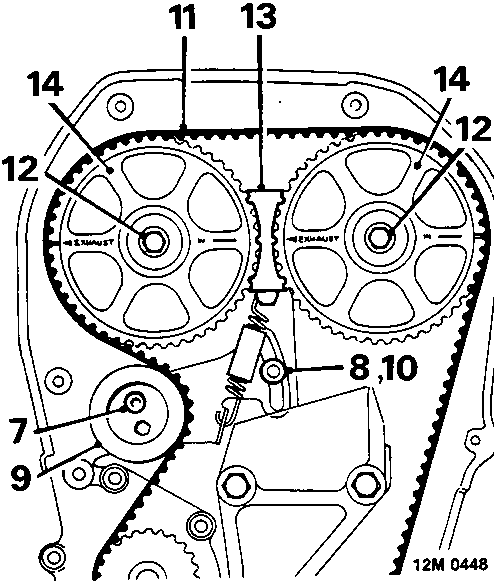

Diagram showing timing belt removal from camshaft gears with callout numbers 7, 8, 9, 10, 11, 12, 13, and 14
  1. Slacken tensioner pulley bolt ½ turn.
  2. Slacken tensioner backplate screw ½ turn.
  3. Push tensioner pulley down to fully OFF position.
  4. Tighten backplate screw to 25 Nm.
  5. Ease timing belt from camshaft gears using fingers only.
  6. Remove bolt and plain washer from camshaft gear.
  7. Remove tool 18G 1570.
  8. Remove camshaft gear.
