Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual04 · Engine 1.4 K8
04 · Engine

Exhaust

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Exhaust
Engine 1.4 K8Exhaust

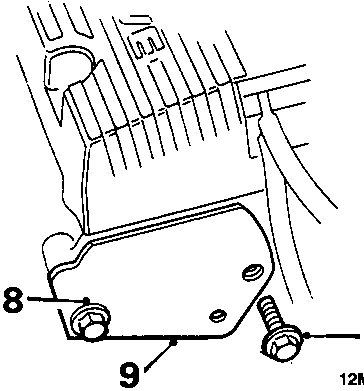

Diagram showing the front camshaft rear cover plate secured by two bolts (8) on the cylinder head.

Exhaust

  1. Remove 2 bolts securing front camshaft rear cover plate.
  2. Remove cover plate.

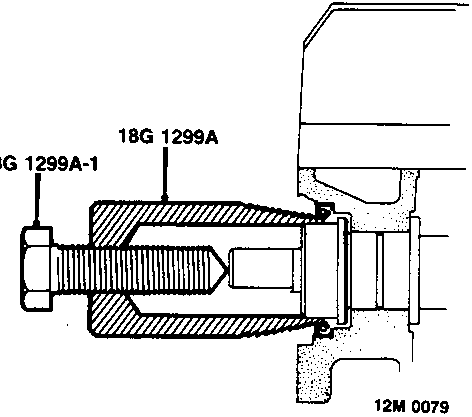

Diagram showing tool 18G 1299A-1 being screwed into the camshaft oil seal, with tool 18G 1299A fitted to the centre bolt.

Inlet and Exhaust

  1. Screw tool 18G 1299A into camshaft oil seal
  2. Remove oil seal by tightening centre bolt tool 18G 1299A – 1.

Refit

  1. Clean sealing area of cylinder head and camshaft, ensure all traces of rubber are removed – do not scrape. Lubricate sealing surfaces.

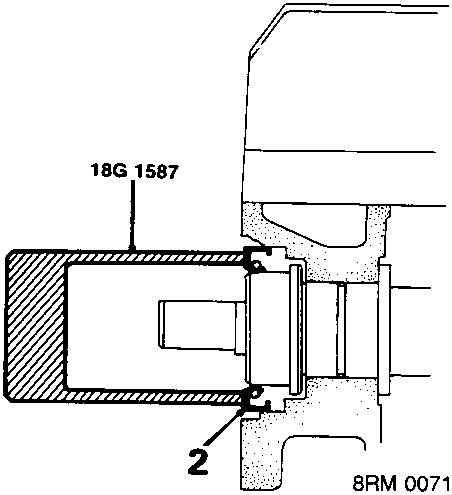

Diagram showing tool 18G 1587 being used to fit the camshaft oil seal (2) into the cylinder block.
  1. Using tool 18G 1587, fit camshaft oil seal.

Inlet

  1. Fit rotor arm and tighten Allen screw to 8 Nm.
  2. Fit flash shield to cylinder head.
  3. Fit distributor cap to cylinder head, tighten screws to 3 Nm.
  4. Fit air cleaner element and cover, see MAINTENANCE.

Exhaust

  1. Fit front camshaft rear cover plate and tighten bolts to 4 Nm.

Inlet and Exhaust

  1. Connect battery earth lead.
