Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual04 · Engine 1.4 K8
04 · Engine

Models with air conditioning

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Models with air conditioning
Engine 1.4 K8Models with air conditioning · page 1 of 2
  1. Remove 5 bolts from upper part of timing belt rear cover, includes bolt at bottom rear.
  2. Remove power steering drive belt, see MAINTENANCE.
Figure
Figure

Models with air conditioning

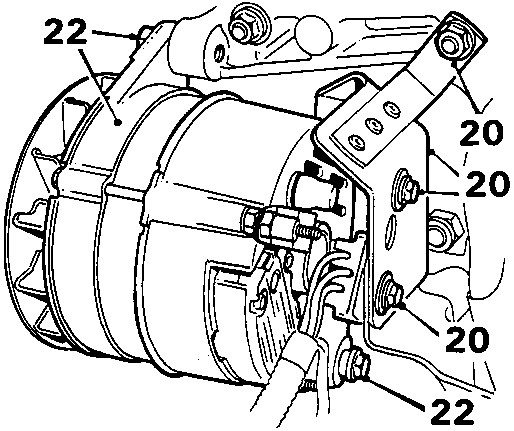

  1. If fitted: Remove nut and 2 bolts and alternator heat shield.

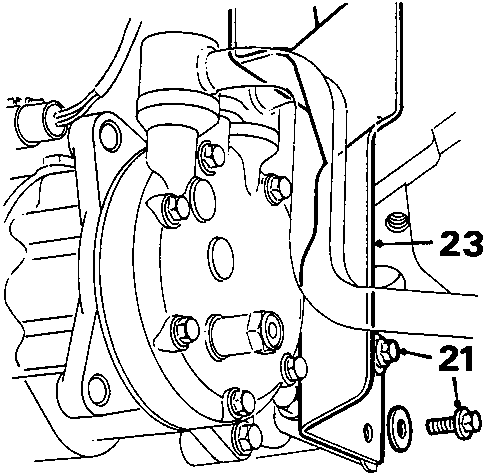

  2. Remove 2 bolts from compressor heat shield.
  3. Slacken 2 lower bolts, remove upper bolt and pivot alternator away from engine.
  4. Remove compressor heat shield.

All models

  1. Disconnect exhaust front pipe from exhaust manifold, see MANIFOLD & EXHAUST – Repairs.
Figure

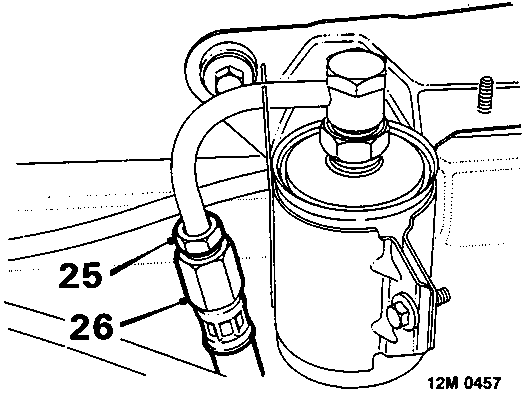

  1. Position absorbent cloth around union. Slacken union to relieve fuel pressure. Retighten union to 38 Nm.
  2. Disconnect fuel feed hose from fuel feed pipe.

WARNING: Position cloth to collect spillage of fuel.

CAUTION: Plug the connections.

Alloy inlet manifold

Figure

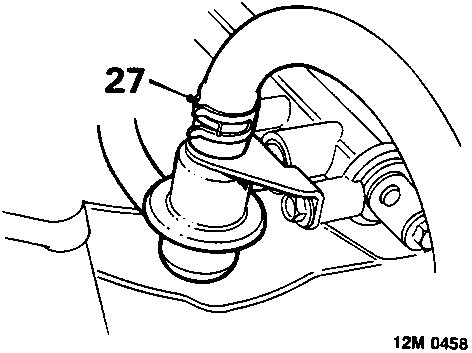

  1. Release clip and disconnect fuel return hose from pressure regulator.

CAUTION: Plug pipes and hoses.

Figure

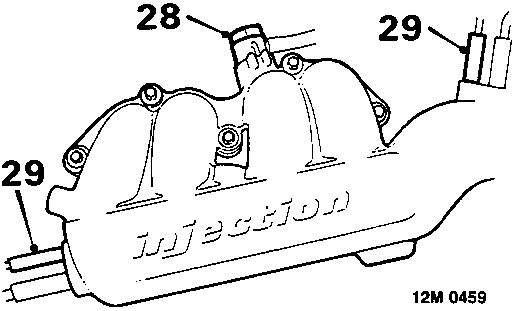

  1. Remove brake servo banjo bolt from inlet manifold, discard 2 sealing washers.
  2. Disconnect 2 vacuum hoses from inlet manifold.
