Engine 1.4 K8Remove

Service Repair No. 12.30.26

Remove

  1. Remove camshaft cover.
  2. Remove camshafts, see 'K' Series Engine Overhaul Manual.
  3. Remove spark plugs from cylinder head, see MAINTENANCE.

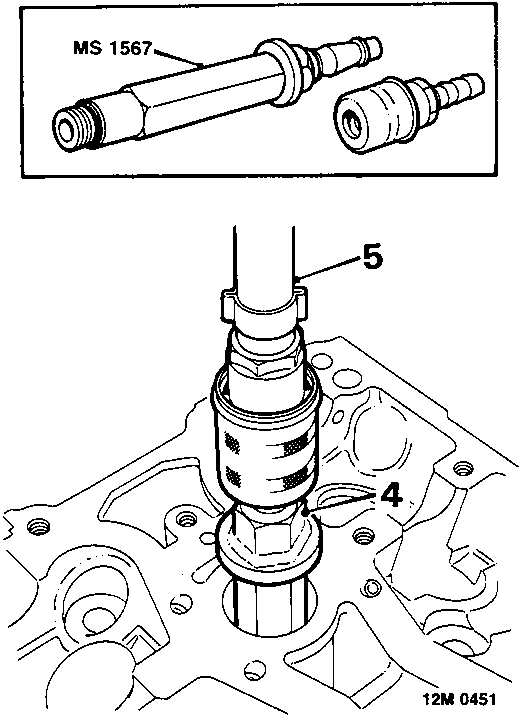

Tool MS 1567 and its application on a cylinder head with callouts 4 and 5
  1. Fit air line adaptor tool MS 1567 into spark plug hole.
  2. Connect an airline to adaptor and apply air pressure.
  3. Remove hydraulic tappet from each exhaust valve.

CAUTION: Retain tappets in fitted order and store inverted to prevent oil loss.

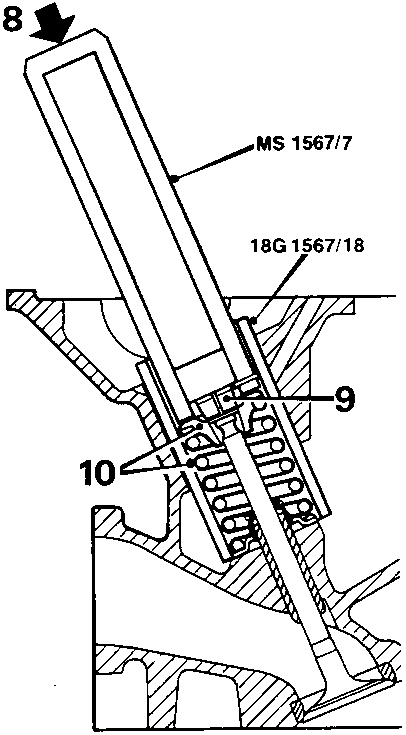

Tool 18G 1567/18 and MS 1567/7 applied to valve spring cap with callouts 9 and 10
  1. Fit tool 18G 1657/18 and tool MS 1567/7 to valve spring cap.
  2. Strike head of tool firmly with hammer to release valve spring collets.
  3. Remove collets from magnetic end of tool.
  4. Remove spring cap and valve spring.
