Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual04 · Engine 1.4 K8
04 · Engine

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Refit
Engine 1.4 K8Refit

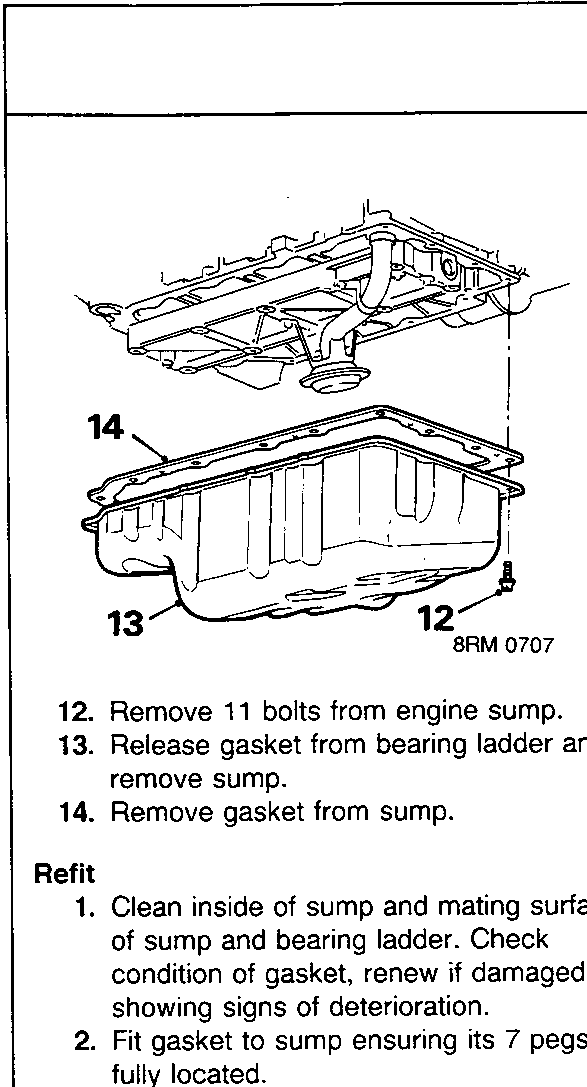

Exploded view of the engine sump showing components labeled 12, 13, and 14
  1. Remove 11 bolts from engine sump.
  2. Release gasket from bearing ladder and remove sump.
  3. Remove gasket from sump.

Refit

  1. Clean inside of sump and mating surfaces of sump and bearing ladder. Check condition of gasket, renew if damaged or showing signs of deterioration.
  2. Fit gasket to sump ensuring its 7 pegs are fully located.
  3. Fit sump to bearing ladder, lightly tighten bolts.
  4. Fit anti - beaming bracket support to sump, lightly tighten bolts.

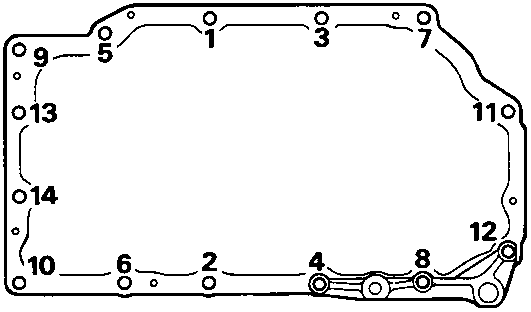

Diagram showing the tightening sequence for sump bolts numbered 1 through 14
  1. Progressively tighten as shown, sump and anti - beaming bracket support bolts to 10 Nm.
  2. Fit anti - beaming bracket, tighten support bracket bolt to 45 Nm, differential housing bolt to 90 Nm.
  3. Fit flywheel lower cover plate and exhaust support bracket, tighten bolts to 9 Nm.
  4. Connect front pipe to manifold, see MANIFOLD & EXHAUST – Repairs.
  5. Remove stand(s) and lower vehicle.
  6. Fill engine with oil, see MAINTENANCE.
  7. Connect battery earth lead.
