Engine 1.4 K8Air conditioning

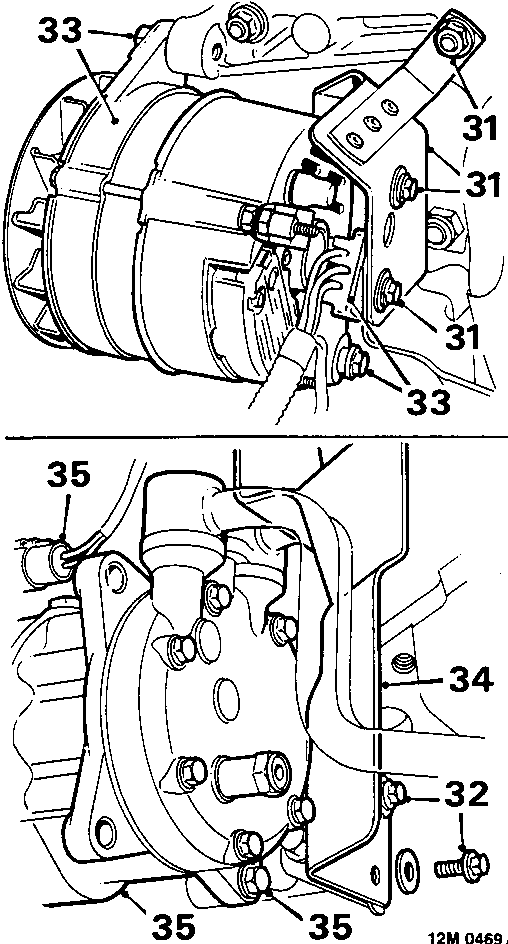

Diagram showing alternator and compressor assembly with callout numbers 31, 33, 34, 35, and 32 pointing to various bolts and shields.
  1. If fitted: Remove nut, 2 bolts and alternator heat shield.

Air conditioning

  1. Remove 2 bolts, position compressor heat shield aside.
  2. Remove 2 bolts, disconnect multiplug and remove alternator.
  3. Remove compressor heat shield.
  4. Disconnect multiplug, remove 4 bolts compressor to bracket and secure compressor aside.
  5. Remove bolt, air conditioning pipe to engine bracket.

All models

  1. Slacken 2 clips, disconnect top and bottom coolant hoses from engine.

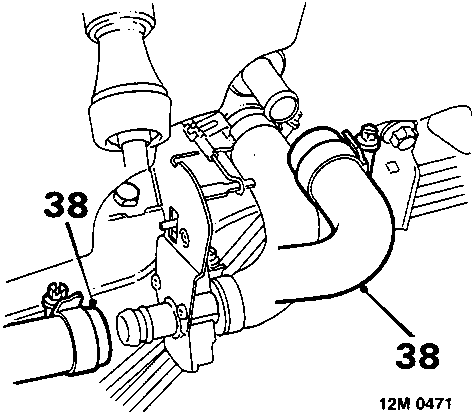

Diagram showing coolant hose connections at the engine with callout number 38.
  1. Slacken 2 clips, disconnect hose from heater and hose from water valve.

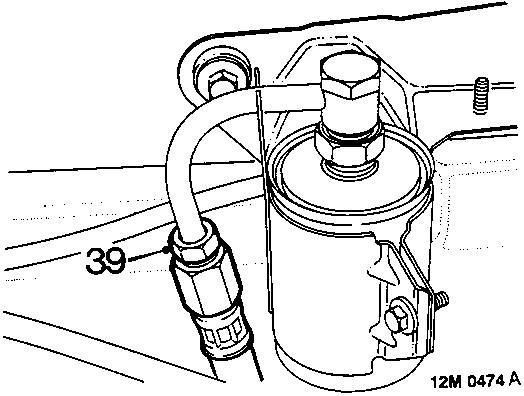

Diagram showing fuel filter and hose connections with callout number 39.

CAUTION: Position absorbent cloth below fuel filter.

  1. Disconnect fuel feed hose union at fuel pipe.
  2. Release clip, disconnect fuel return hose from fuel pipe.

CAUTION: Plug the connections.

  1. Slacken locknut, release throttle cable from abutment bracket, disconnect inner cable from cam and position cable aside.
  2. Disconnect clutch cable from release lever and position aside, see CLUTCH – Repairs.
Illustrates brake fluid reservoir and associated components
