Engine and gearbox assembly k8/k16 (page 2 of 2)

Make

Rover

Model

Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual

Section

Repairs

Engine 1.4 K8Engine and gearbox assembly k8/k16 · page 2 of 2

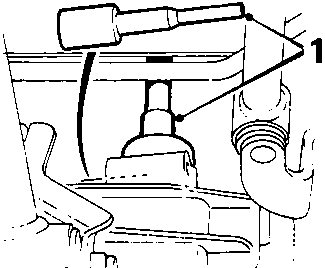

13. Remove rubber pin and disconnect speedometer cable from gearbox.
14. Disconnect exhaust front pipe support bracket and manifold flange see MANIFOLD & EXHAUST. – Repairs.

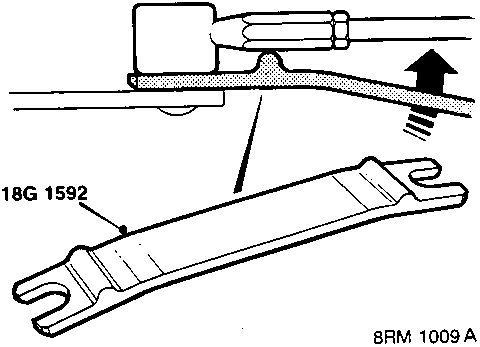

15. Use tool 18G 1592 and disconnect 2 gear change linkage ball joints from gearbox levers.
16. Remove air cleaner assembly, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs.
17. Disconnect purge hose from charcoal canister.

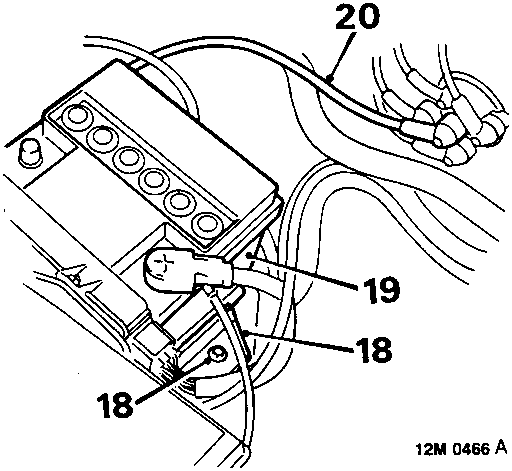

18. Remove bolt from battery clamp, remove clamp.
19. Disconnect battery ' + ' lead, remove battery.
20. Disconnect HT lead from coil and distributor.

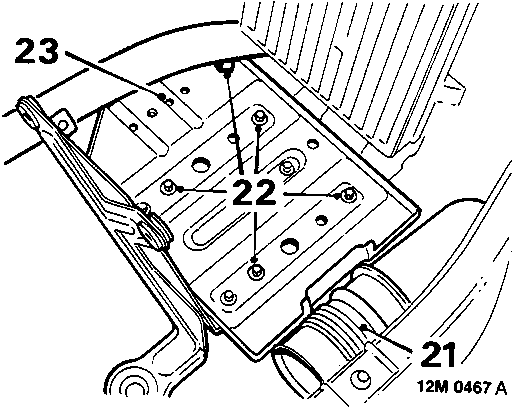

21. Remove air intake hose from intake elbow.
22. Release harness clip and remove 4 bolts from battery tray.
23. Remove battery tray from body and resonator.

24. Remove 2 bolts, fusebox and ECU mounting bracket to body.
25. Raise fusebox, disconnect 2 engine harness multiplugs from fusebox.
26. Disconnect engine harness multiplug and vacuum pipe from ECU
27. Slacken 2 bolts, remove battery tray support bracket.
28. Remove starter motor see ELECTRICAL. – Repairs.
29. Power steering: Remove power steering drive belt, see MAINTENANCE.
30. Remove alternator drive belt, see MAINTENANCE.

04 Engine
