Engine 2.0 T16Engine and manual gearbox · page 2 of 5

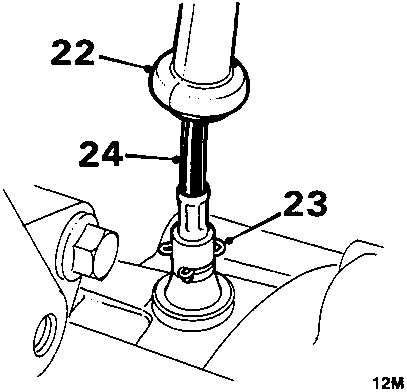

Diagram showing speedometer cable connections at the gearbox, with callout numbers 22, 23, and 24.
  1. Release speedometer cable cover from gearbox.
  2. Remove clip securing speedometer cable to gearbox.
  3. Disconnect speedometer cable from gearbox, move cable aside.

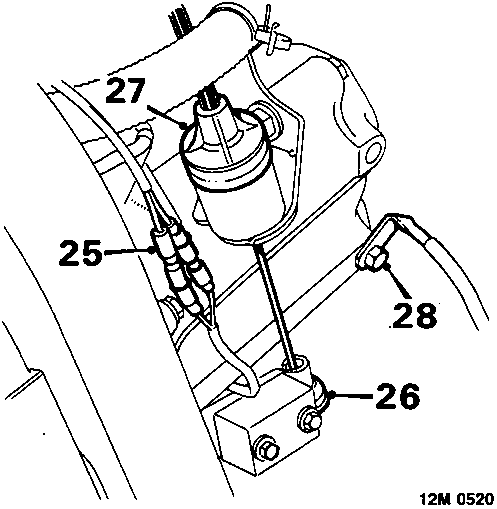

Diagram showing reverse lamp switch leads, clutch cable release lever, abutment bracket, and earth lead at the gearbox, with callout numbers 25, 26, 27, and 28.
  1. Disconnect 2 reverse lamp switch leads.
  2. Release clutch cable from release lever.
  3. Release clutch cable from abutment bracket, move cable aside.
  4. Remove bolt securing earth lead to gearbox, move lead aside.

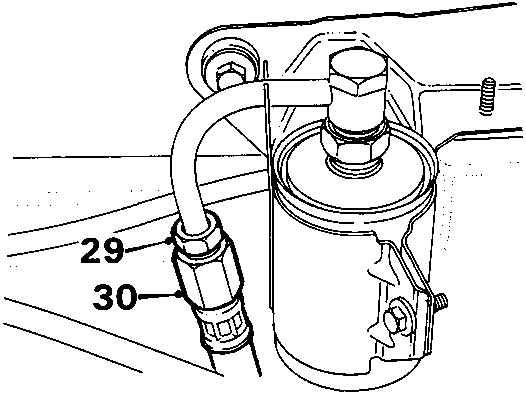

Diagram showing fuel filter with feed pipe and return hose connections, with callout numbers 29 and 30.
  1. Position absorbent cloth around union. Slacken union to relieve fuel pressure. Retighten union to 38 Nm.

38
3.8

  1. Disconnect fuel feed pipe from fuel filter.
  2. Disconnect fuel return hose from return pipe.

CAUTION: Plug the connections.

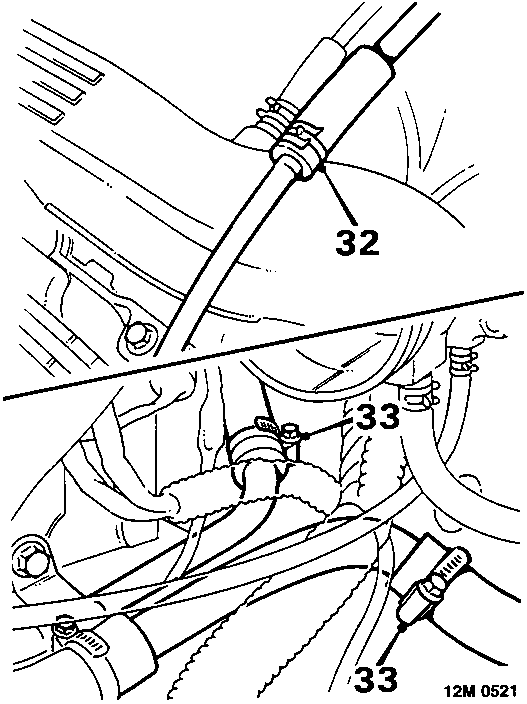

Diagram showing expansion tank hose connection at thermostat housing and heater hoses at coolant rail, with callout number 32 and two instances of 33.
  1. Slacken clip, disconnect expansion tank hose from thermostat housing pipe.
  2. Slacken clips and disconnect heater hoses from coolant rail.
