Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual07 · Engine 2.0 T16
07 · Engine

Engine and manual gearbox (page 5 of 5)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 2.0 T16Engine and manual gearbox · page 5 of 5

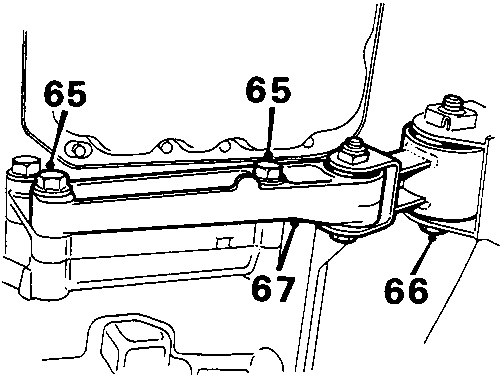

Diagram showing lower tie rod bracket and bolts securing to gearbox and sub-frame, with callout numbers 65, 66, 67
  1. Remove 2 bolts securing lower tie rod bracket to gearbox.
  2. Remove bolt securing lower tie rod to sub – frame.
  3. Remove tie rod and bracket.
  4. Remove oil filter element, see MAINTENANCE.

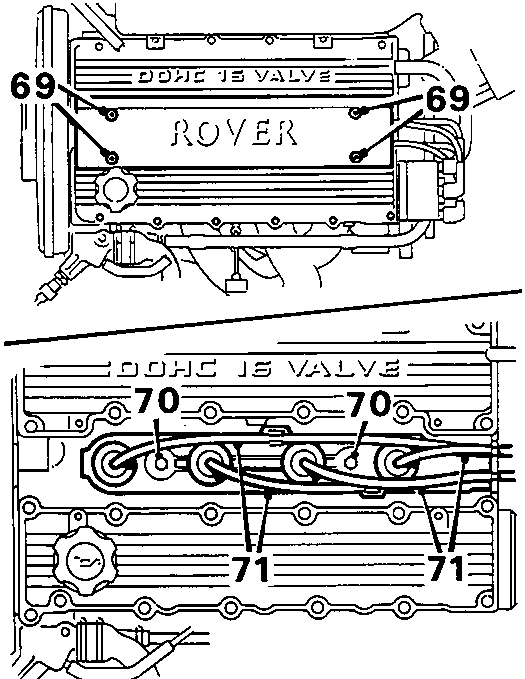

Diagram showing spark plug cover removal, lead retaining plate, and H.T. leads with callout numbers 69, 70, 71
  1. Remove 4 screws securing spark plug cover and remove cover.
  2. Remove 2 bolts securing spark plug lead retaining plate.
  3. Disconnect H.T. leads from spark plugs, move leads aside.

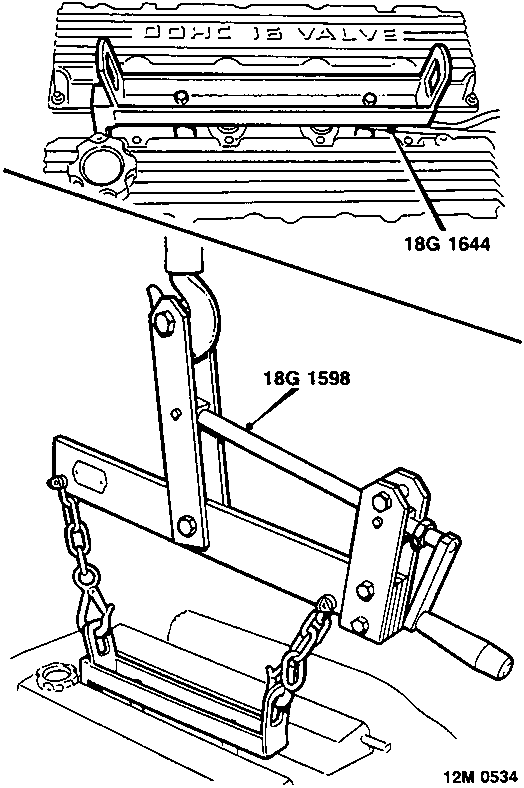

Diagram showing engine lifting tool 18G 1598 attached to tool 18G 1644 on cylinder head, connected to hoist chain
  1. Using 2 bolts from tool 18G 1644, attach tool to spark plug cover bolt holes in cylinder head. Tighten bolts.
  2. Attach engine lifting tool 18G 1598 to tool 18G 1644 and connect lifting chain of hoist.
  3. Raise hoist to just support weight of engine.

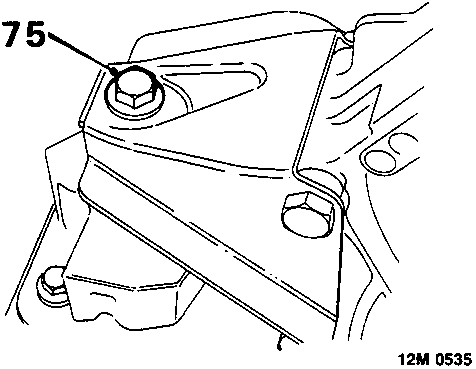

Diagram showing bolt securing engine front mounting bracket to mounting rubber, callout number 75
  1. Remove bolt securing engine front mounting bracket to mounting rubber.
