Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual10 · Modular engine management system - MPi
10 · Engine

R.H.D. vehicles only

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › R.H.D. vehicles only
Modular engine management system - MPiR.H.D. vehicles only

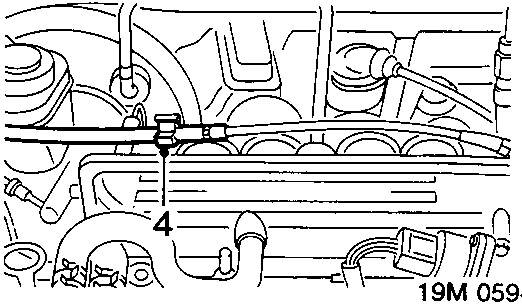

Diagram showing plastic inlet manifold with cable retaining clip
  1. Plastic inlet manifold: Release cable from retaining clip on inlet manifold.

R.H.D. vehicles only

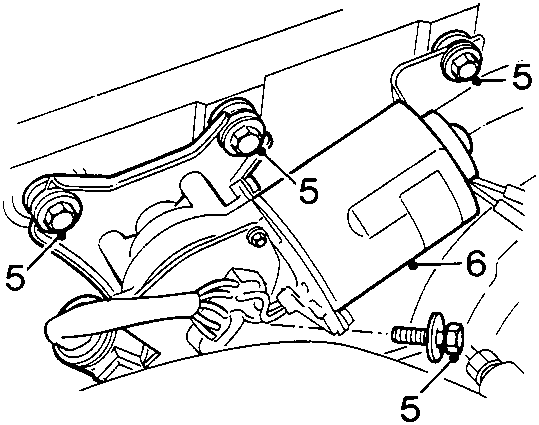

Diagram showing windscreen wiper motor secured to bulkhead with screws
  1. Remove 4 screws securing windscreen wiper motor to bulkhead.
  2. Release windscreen wiper motor from bulkhead.

All models

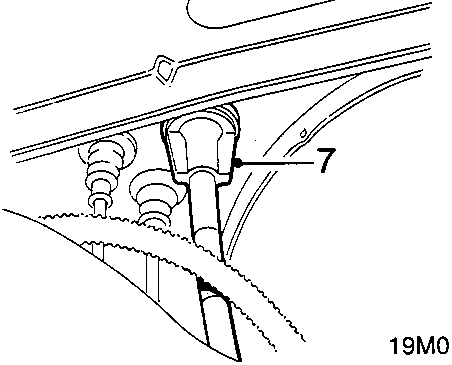

Diagram showing cable being released from bulkhead
  1. Release cable from bulkhead

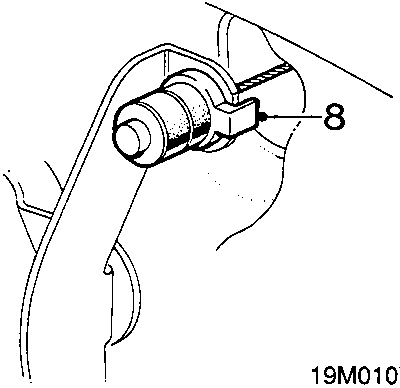

Diagram showing cable disconnected from throttle pedal
  1. Disconnect cable from throttle pedal; withdraw cable.

Refit

  1. Locate cable in bulkhead.
  2. Connect cable to throttle pedal.
  3. Connect cable to cam.
  4. Adjust throttle cable, see Adjustments.
  5. Secure cable in clip.
  6. R.H.D. vehicles only: Position windscreen wiper motor to bulkhead, fit and tighten screws.

TURBOCHARGER – T16

Service Repair No. 19.42.01

Remove

  1. Disconnect both battery leads.
  2. Remove bolt and battery clamp, lift out battery.
  3. Remove air cleaner.
  4. Remove intercooler.
  5. Drain cooling system, see MAINTENANCE.
  6. Remove alternator, see ELECTRICAL – Repairs.
  7. Remove exhaust manifold and turbocharger, see MANIFOLD & EXHAUST – Repairs.
Diagram showing turbocharger removed from exhaust manifold with gasket
  1. Remove 4 nuts securing turbocharger to exhaust manifold.
  2. Remove manifold from turbocharger.
  3. Remove gasket.
