CAMSHAFT SENSOR – T16

Service Repair No. 19.22.07

Remove

  1. Disconnect battery earth lead.

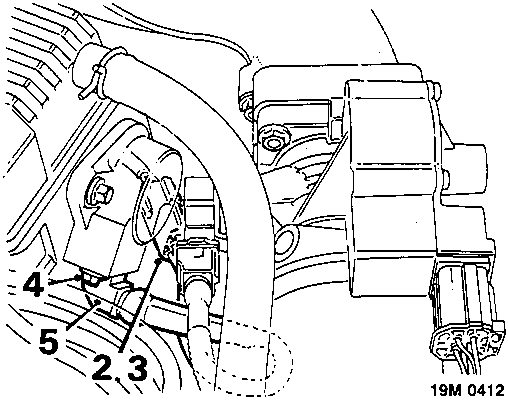

Diagram showing camshaft sensor location with callout numbers 2, 3, 4, and 5
  1. Release camshaft sensor multiplug from bracket.
  2. Disconnect multiplug.
  3. Remove screw securing camshaft sensor to housing.
  4. Remove camshaft sensor.

Refit

  1. Clean mating faces of camshaft sensor and housing.
  2. Fit sensor to housing, fit and tighten screw.
  3. Connect sensor multiplug.
  4. Secure sensor multiplug to bracket.
  5. Connect battery earth lead.

COOLANT TEMPERATURE SENSOR

Service Repair No. 18.30.59

Remove

  1. Disconnect battery earth lead.
  2. Position drain tray beneath sensor.

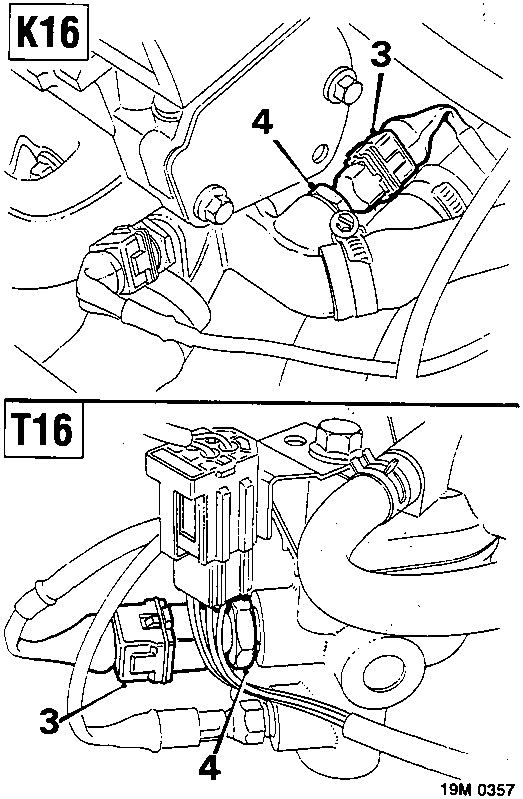

Diagram showing coolant temperature sensor location on K16 engine with callout numbers 3 and 4
  1. Disconnect sensor multiplug.
  2. Remove sensor.

Refit

  1. Clean sensor.
  2. Fit sensor, connect multiplug.
  3. Connect battery earth lead.
  4. Top-up cooling system, see MAINTENANCE.
  5. Remove drain tin.
