Camshaft sensor – t16 (page 2 of 2)

Service Repair No. 18.30.12

Remove

1. T16 only: Raise front of vehicle.

WARNING: Support on safety stands.

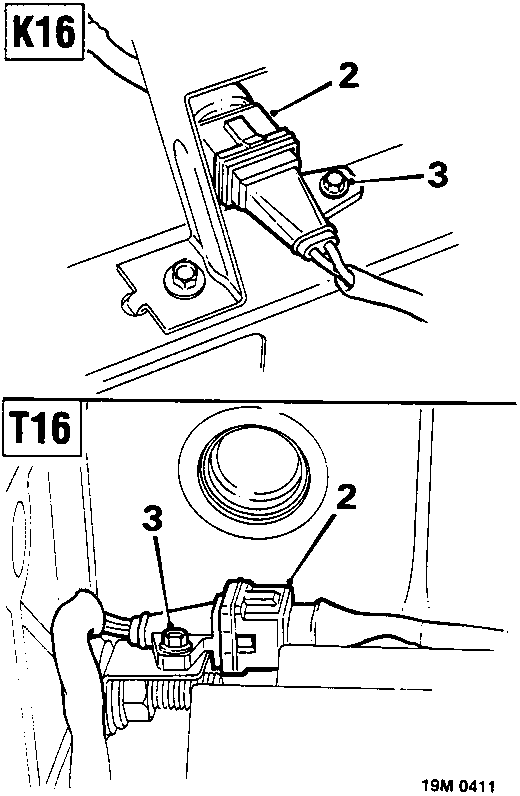

2. Disconnect multiplug from crankshaft sensor.
3. Remove screw, release lead from bracket.

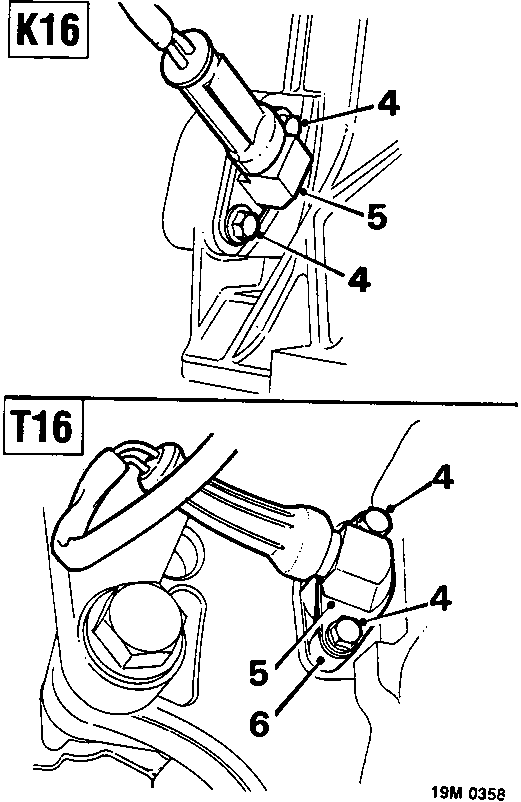

4. Remove 2 bolts securing crankshaft sensor.
5. Remove crankshaft sensor.
6. T16 only: Collect sensor spacer.

Refit

1. Clean crankshaft sensor and mating surface of backplate.
2. T16 only: Fit crankshaft sensor spacer.
3. Fit crankshaft sensor, fit bolts and tighten to 6 Nm.
4. Position lead to bracket, fit and tighten screw.
5. Connect multiplug.
6. Remove stand(s) and lower vehicle.
