Modular engine management system - MPiRemove

Service Repair No. 17.15.13

Remove

  1. Disconnect battery earth lead.

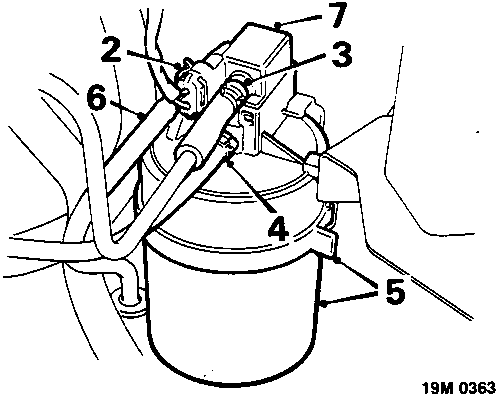

Diagram showing charcoal canister assembly with callout numbers 2, 3, 4, 5, 6, and 7
  1. Disconnect multiplug from purge valve.
  2. Release clip and disconnect hose from purge valve.
  3. Release clip and disconnect fuel tank hose from charcoal canister.
  4. Release securing strap and remove charcoal canister.
  5. Disconnect vent hose from charcoal canister.
  6. Release and remove purge valve.

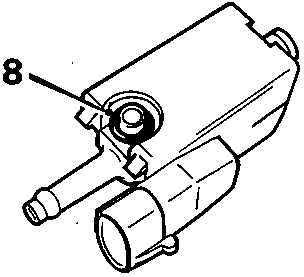

Diagram of purge valve with callout number 8
  1. Remove and discard 'O' ring.

Refit

  1. Fit new 'O' ring to purge valve.
  2. Fit purge valve to charcoal canister.
  3. Fit vent hose to charcoal canister.
  4. Fit charcoal canister and secure strap.
  5. Connect fuel tank hose to charcoal canister and secure clip.
  6. Connect hose to purge valve and secure clip.
  7. Connect multiplug to purge valve.
  8. Connect battery earth lead.

PURGE CONTROL VALVE

Service Repair No. 17.15.39

Remove

  1. Disconnect battery earth lead.

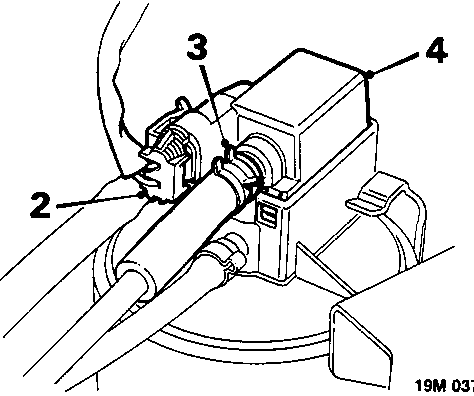

Diagram showing purge control valve assembly with callout numbers 2, 3, and 4
  1. Disconnect multiplug from purge control valve.
  2. Release clip and disconnect hose from valve.
  3. Release valve from charcoal canister.
  4. Remove valve.

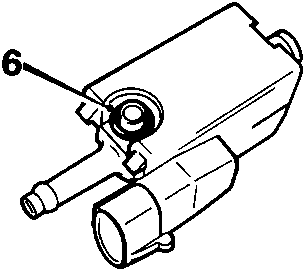

Diagram of purge valve with callout number 6
  1. Discard 'O' ring.

Refit

  1. Clean valve and valve location.
  2. Fit new 'O' ring to purge valve.
  3. Position and secure valve to charcoal canister.
  4. Connect hose to purge valve and secure with clip.
  5. Connect multiplug to valve.
  6. Connect battery earth lead.
