Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual10 · Modular engine management system - MPi
10 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Modular engine management system - MPiRemove

Service Repair No. 18.30.28

Remove

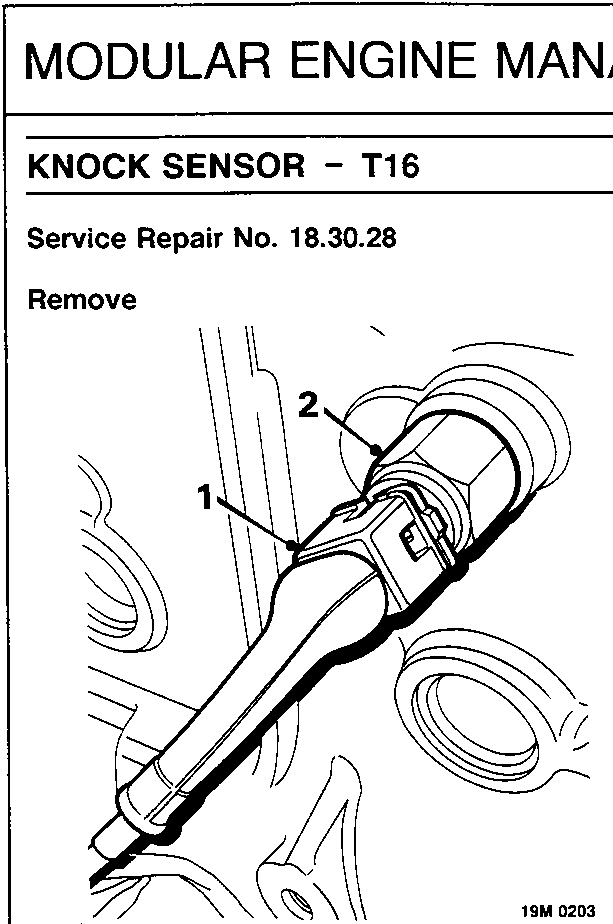

Diagram showing knock sensor (1) and multiplug (2) on the cylinder block
  1. Disconnect multiplug from knock sensor.
  2. Remove knock sensor.

Refit

  1. Clean mating face of cylinder block.
  2. Fit knock sensor and tighten to 12 Nm.
  3. Connect multiplug.

OXYGEN SENSOR – K16

Service Repair No. 19.22.16

Remove

  1. Remove air cleaner.

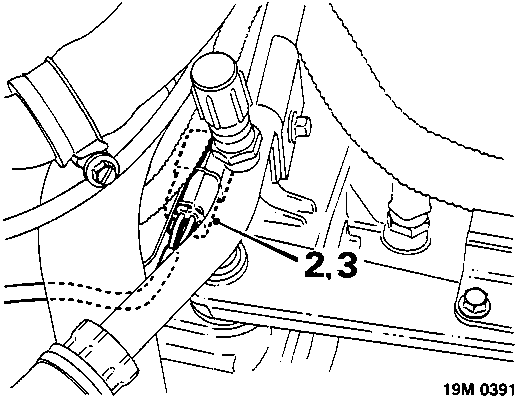

Diagram showing oxygen sensor (2,3) located in the exhaust manifold
  1. Disconnect oxygen sensor multiplug.
  2. Release multiplug from bracket.

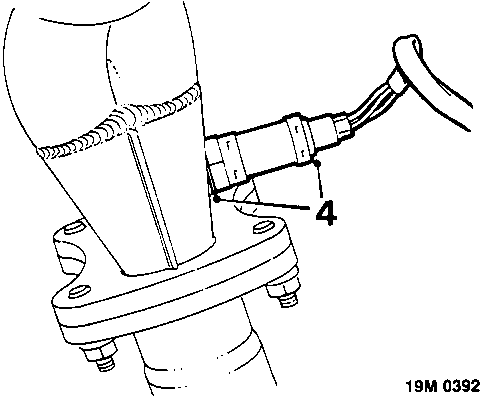

Diagram showing oxygen sensor (4) being removed from the exhaust pipe flange
  1. Remove oxygen sensor; collect sealing washer.

Refit

  1. Fit sealing washer to oxygen sensor.
  2. Fit oxygen sensor and tighten to 55 Nm.
  3. Secure multiplug in bracket, connect multiplug.
  4. Fit air cleaner.
