Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual10 · Modular engine management system - MPi
10 · Engine

Stepper motor – plastic inlet manifold

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Stepper motor – plastic inlet manifold
Modular engine management system - MPiStepper motor – plastic inlet manifold
  1. Fit new Torx screws and wave washers, tighten screws to 1.5 Nm.

CAUTION: Torque figure must not be exceeded.

  1. Connect multiplug.
  2. Operate throttle cable cam 2 or 3 times and ensure that full travel to throttle open and closed positions is available.

STEPPER MOTOR – PLASTIC INLET MANIFOLD

Service Repair No. 18.30.05

Remove

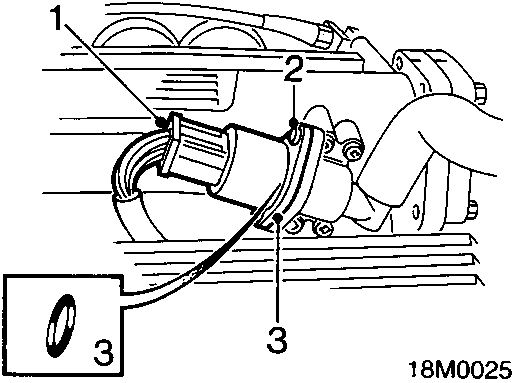

  1. Disconnect multiplug from stepper motor.
  2. Remove 2 Torx screws securing stepper motor to inlet manifold.
  3. Remove stepper motor, remove and discard 'O' ring.

Refit

  1. Ensure mating faces of inlet manifold and stepper motor are clean.
  2. Lubricate a new 'O' ring with silicone grease and fit to stepper motor.
  3. Fit stepper motor, fit Torx screws and tighten to 1.5 Nm.
  4. Connect multiplug to stepper motor.
Illustrates fuel injector with O-ring seal installation
