Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual10 · Modular engine management system - MPi
10 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Modular engine management system - MPiRemove

Service Repair No. 19.45.06

Remove

  1. Disconnect battery earth lead.
Brake caliper mounting hardware assembly diagram
Diagram showing fuel pressure regulator and union connection labeled 2

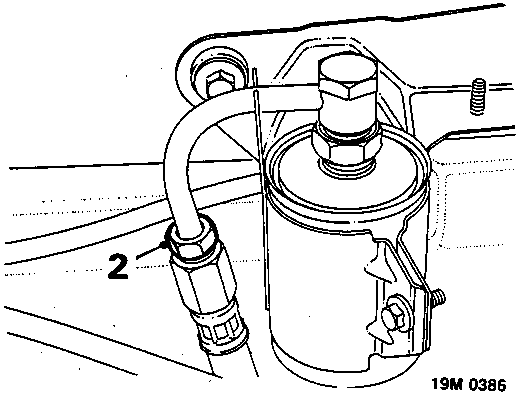

  1. Position absorbent cloth around union. Slacken union to relieve fuel pressure. Retighten union to 38 Nm.

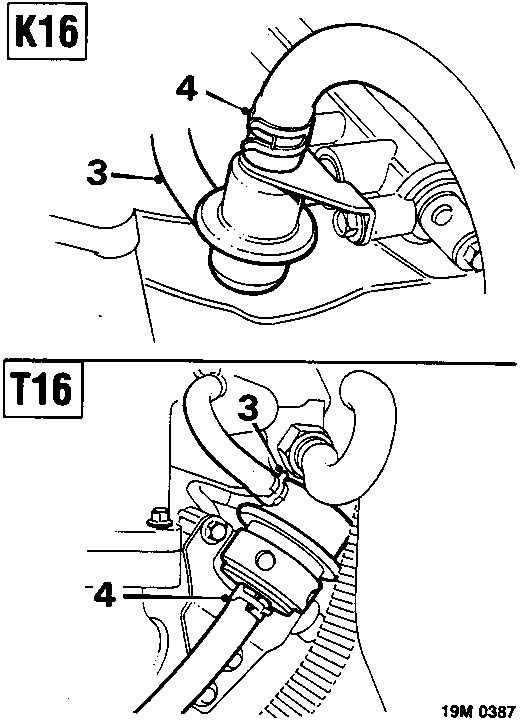

  1. Disconnect vacuum hose from pressure regulator.
  2. Release clip and disconnect fuel hose from pressure regulator.

CAUTION: Plug the connections.

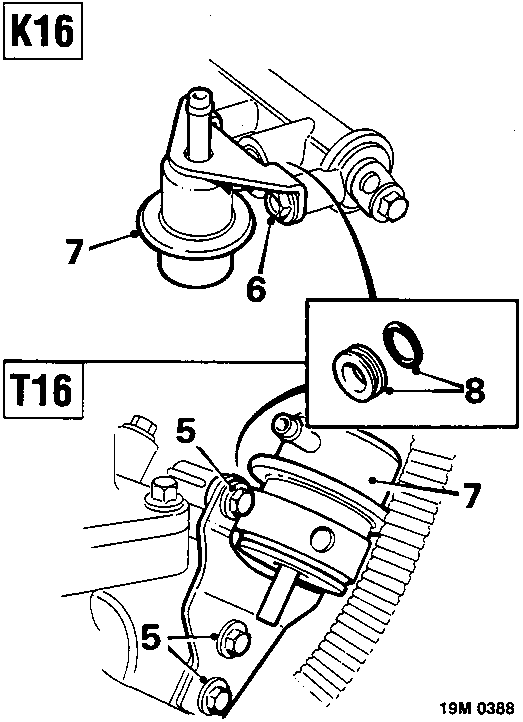

  1. T16 only: Remove 4 bolts securing fuel rail support bracket to fuel rail and manifold, remove support bracket.
  2. K16 only: Remove 2 bolts securing pressure regulator.
  3. Remove pressure regulator.
  4. Remove 'O' ring and spacer, discard 'O' ring.

Refit

  1. Clean pressure regulator, spacer and mating surfaces.
  2. Fit spacer to pressure regulator.
  3. Lubricate and fit new 'O' ring to pressure regulator.
  4. Fit pressure regulator.
  5. T16 only: Fit support bracket to fuel rail and manifold, tighten bolts to 10 Nm.
  6. Remove plugs, connect fuel hose to regulator and secure with clip.
  7. Fit vacuum hose to pressure regulator.
  8. Connect battery earth lead.
Shows brake caliper mounting bolts and hose connections
