Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual10 · Modular engine management system - MPi
10 · Engine

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Modular engine management system - MPiRemove

Service Repair No. 19.22.08

Remove

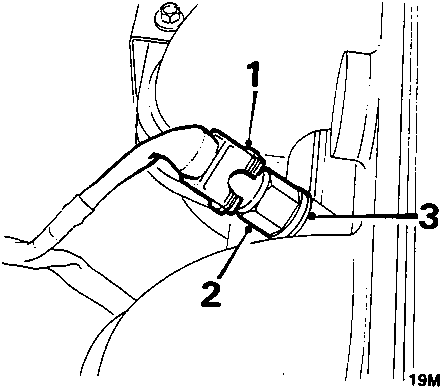

Diagram showing fuel temperature sensor (1), multiplug (2), and sealing washer (3) location on the fuel rail.
  1. Disconnect fuel temperature sensor multiplug.
  2. Remove fuel temperature sensor.
  3. Remove sealing washer.

Refit

  1. Clean mating face of fuel rail.
  2. Fit sealing washer.
  3. Fit temperature sensor and tighten to 15 Nm.
  4. Connect multiplug.

INTAKE AIR TEMPERATURE SENSOR

Service Repair No. 18.30.09

Remove

  1. Disconnect battery earth lead.

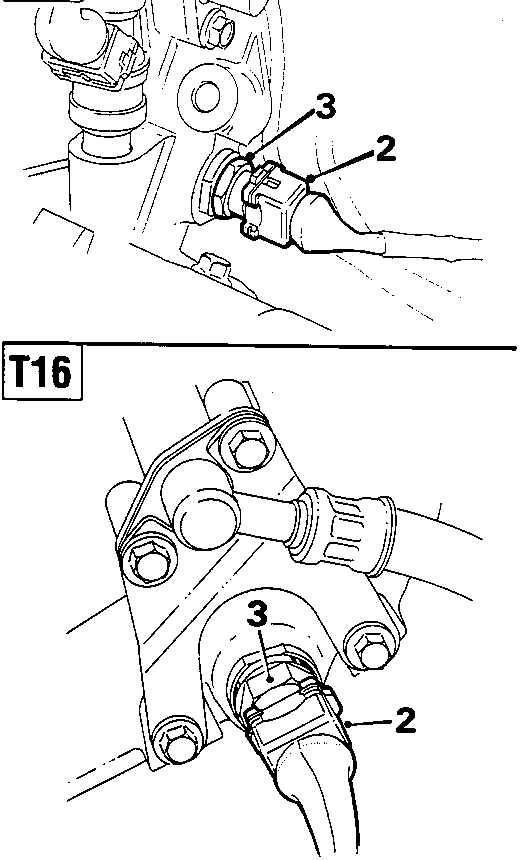

Diagram showing intake air temperature sensor (2) and its multiplug (3) located in the inlet manifold.
  1. Disconnect multiplug from temperature sensor.
  2. Remove sensor from inlet manifold.

Refit

  1. Clean sensor threads and mating face.
  2. Fit sensor to inlet manifold and tighten to 7 Nm.
  3. Connect multiplug to sensor.
  4. Connect battery earth lead.
