Remove

Service Repair No. 19.10.01

Remove

1. Disconnect both battery leads.
2. Remove bolt and battery clamp; lift out battery.

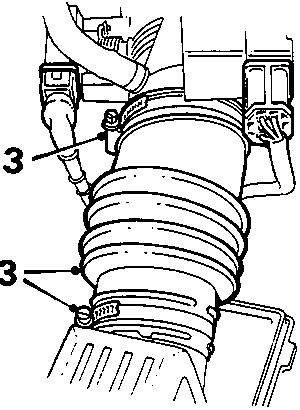

3. Slacken 2 clips, remove hose from throttle housing and air cleaner.

Note: On engines fitted with plastic inlet manifold, hose is secured to throttle housing by means of a spring clip.

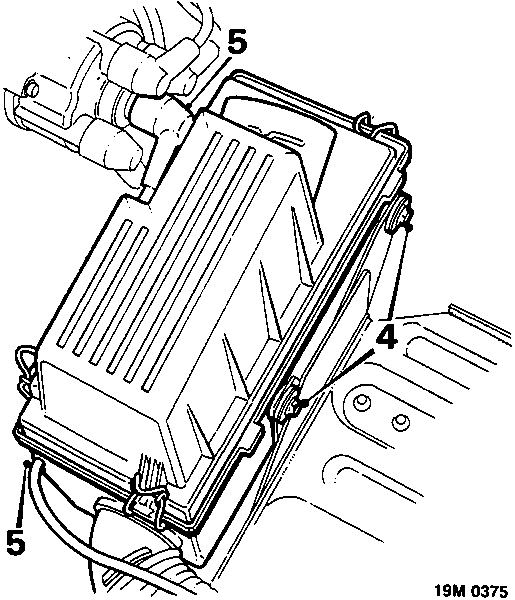

4. Remove 2 screws securing air cleaner to battery tray.
5. Disconnect coil H.T. lead from distributor cap and clip on air cleaner.
6. Release air cleaner from mounting bracket and disconnect air cleaner from intake duct hose.

Refit

1. Check grommets in mounting bracket for damage; renew as necessary.
2. Position air cleaner to mounting bracket, connecting intake duct hose and ensuring spigots on air cleaner locate in grommets.
3. Fit and tighten screws securing air cleaner to battery tray.
4. Connect hose to air cleaner and throttle housing; secure clips.
5. Fit battery into tray, fit clamp and tighten bolt; connect both battery leads.
6. Connect coil H.T. lead to distributor cap and clip on air cleaner.

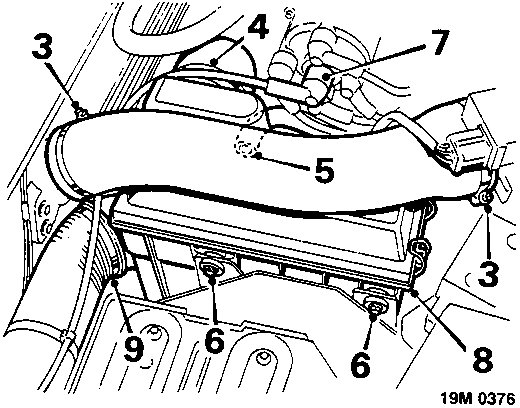

AIR CLEANER – TURBO MODELS

Service Repair No. 19.10.01

Remove

1. Disconnect both battery leads.
2. Remove bolt and battery clamp; lift out battery.

3. Slacken 2 clips, remove hose from throttle housing and intercooler.
4. Slacken clip, disconnect turbocharger hose from air cleaner.
5. Disconnect sensing hose from air cleaner.
6. Remove 2 screws securing air cleaner to battery tray.
7. Disconnect coil H.T. lead from distributor cap and clip on intake hose.
8. Release air cleaner from mounting bracket.
9. Slacken clip and remove intake hose from air cleaner.
10. Remove air cleaner.

Refit

1. Fit intake hose to air cleaner and tighten clip.
2. Check grommets in mounting bracket for damage; renew as necessary.
3. Fit air cleaner, ensuring spigots on air cleaner locate in grommets on mounting bracket.
4. Fit and tighten screws securing air cleaner to battery tray.
5. Connect turbocharger hose to air cleaner; tighten clip.
