Anti - roll bar link

ANTI - ROLL BAR LINK

Service Repair No. 60.10.02

Remove

1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

2. Remove road wheel(s).

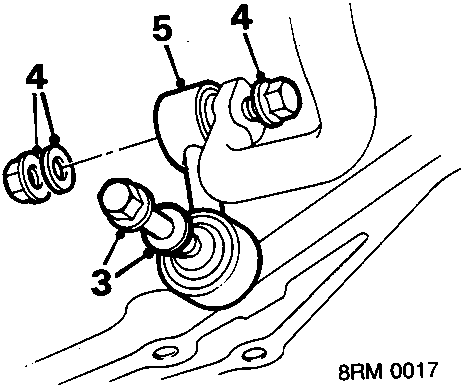

3. Remove bolt and washer link to lower arm.
4. Remove nut, washer and bolt link to anti - roll bar.
5. Remove link.

Refit

1. Place link in position.
2. Fit bolt and washer anti - roll bar link to lower arm and tighten to 45 Nm.
3. Fit bolt, washer and nut anti - roll bar link to anti - roll bar and tighten to 45 Nm.
4. Fit road wheel and tighten nuts to 100 Nm.
5. Remove stand(s) and lower vehicle.

ANTI - ROLL BAR BUSHES

Service Repair No. 60.10.05

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

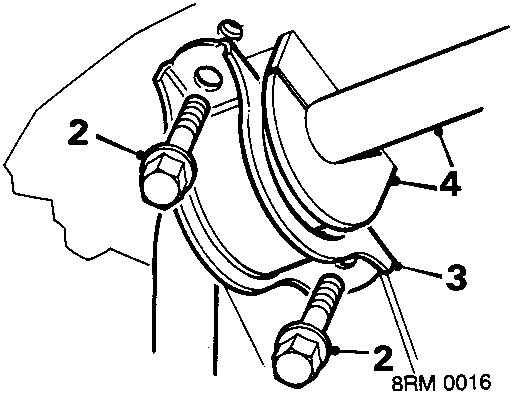

2. Remove 2 bolts from each anti - roll bar bush clamp to cross member.
3. Remove clamps.
4. Lever anti - roll bar downwards and remove 2 bushes.

Refit

1. Clean anti - roll bar.
2. Lubricate bush positions of anti - roll bar with soft soap.
3. Lever bar downwards and fit 2 bushes.
4. Fit clamps.
5. Fit 2 bolts to each anti - roll bar clamp and tighten to 15 Nm.
6. Remove stand(s) and lower vehicle.

FRONT ANTI - ROLL BAR

Service Repair No. Anti - roll bar – 60.10.01

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

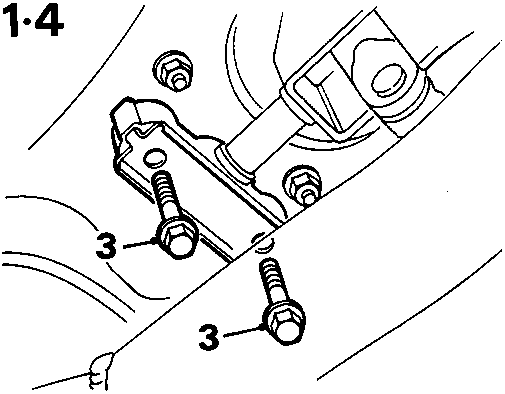

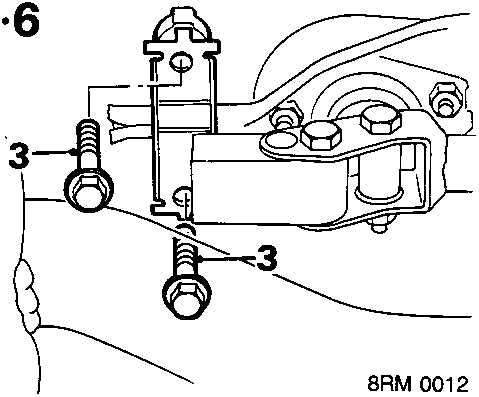

3. Remove 2 bolts gear change linkage to body.
