Refit

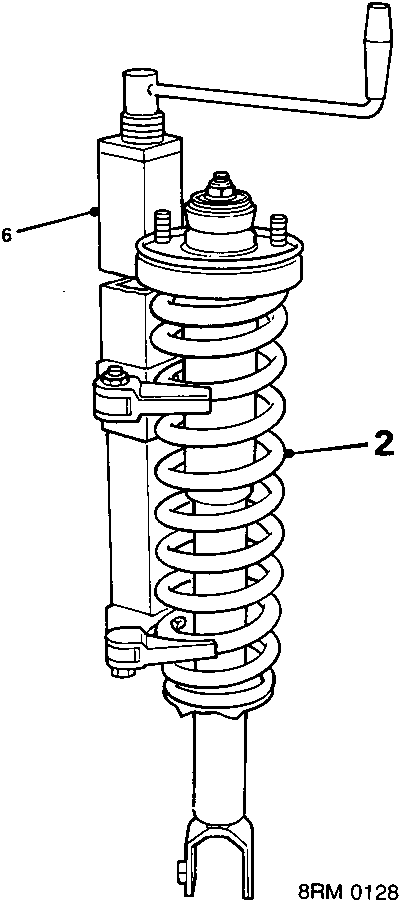

1. Fit spring compressor tool 18G 1516 to vice.
2. Position damper to spring compressor and compress spring.

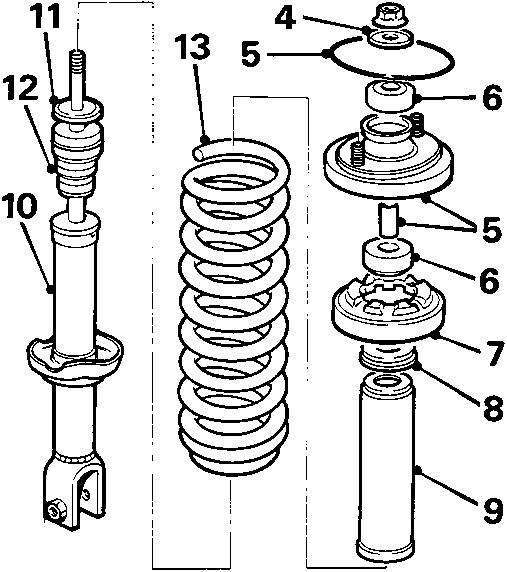

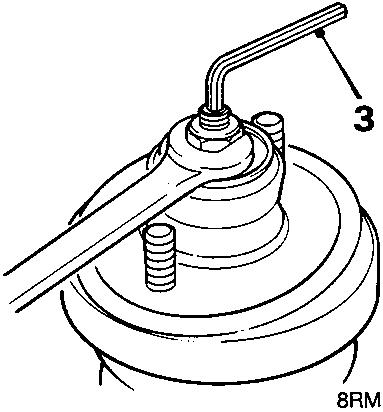

3. Hold shaft with Allen key and remove nut from damper.
4. Collect washer
5. Remove damper mounting plate and collar.
6. Remove 2 damper mounting rubbers and collar from damper mounting plate.
7. Remove spring mounting rubber.
8. Remove dust cover washer.
9. Remove dust cover.
10. Remove damper from spring.
11. Remove bump stop plate.
12. Remove bump stop.
13. Remove spring from spring compressor tool 18G 1516.

Refit

1. Fit spring to spring compressor tool 18G 1516 and compress spring.
2. Fit damper to spring.
3. Fit bump stop and bump stop plate to damper.
4. Fit dust cover and dust cover washer.
5. Fit spring mounting rubber to base mounting plate
6. Fit 2 damper mounting rubbers and collar to base mounting plate
7. Position base mounting plate assembly on damper and align mounting studs to axis lower fixing bolt.
8. Fit special washer. Hold damper shaft with Allen key.
9. Fit damper base mounting nut and tighten to 30 Nm.
10. Remove spring and damper assembly from spring compressor tool 18G 1516, aligning damper to spring while releasing spring tension.
11. Clean mounting point under wing and place damper and spring assembly in position.
12. Fit 2 top mounting nuts and tighten to 32 Nm.
13. Align lower arm to damper and fit but do not tighten lower arm to damper bolt.
