SuspensionRemove

Service Repair No. 64.35.46

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove rear caliper and position aside, see Rear hub bearing.
  3. Remove rear hub, see Rear hub bearing.

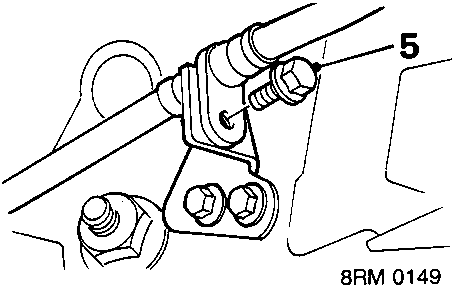

Diagram showing bolt (5) securing brake hose to bracket
  1. Remove bolt brake hose to bracket.

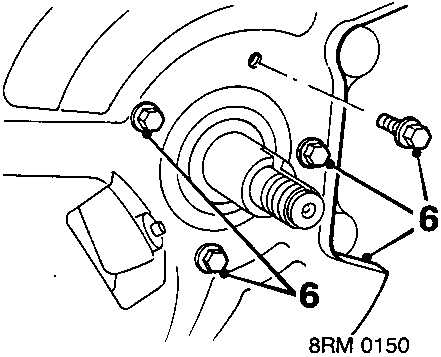

Diagram showing four bolts (6) securing disc shield to stub axle
  1. Remove 4 bolts and disc shield from stub axle.

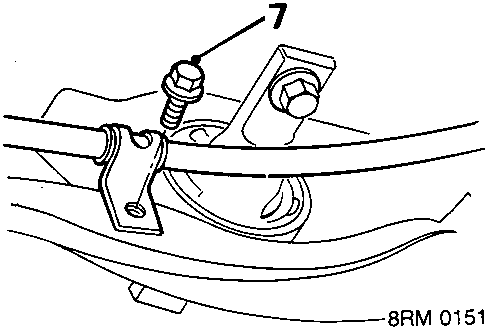

Diagram showing bolt (7) securing handbrake cable clip to trailing arm
  1. Remove bolt handbrake cable clip to trailing arm and disconnect handbrake cable.

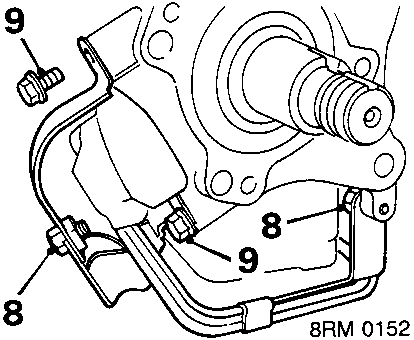

Diagram showing bolts (8) and ABS wiring bracket (9) on trailing arm

ABS models:

  1. Remove 2 bolts and disconnect ABS wiring bracket from trailing arm.
  2. Remove 2 bolts and ABS sensor shield.

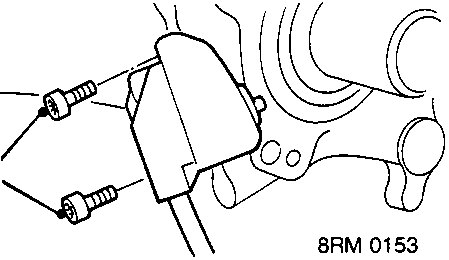

Diagram showing two bolts (10) securing ABS sensor/adapter plate to stub axle
  1. Remove 2 bolts ABS sensor/adapter plate to stub axle, position sensor/adapter plate aside.

All models:

  1. Support lower arm on jack against spring tension.

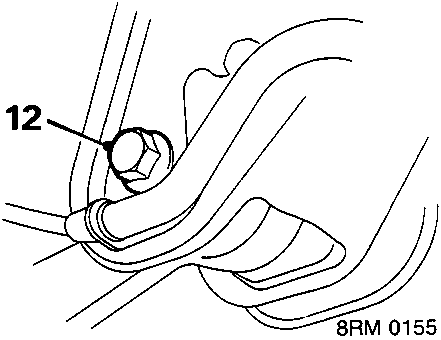

Diagram showing bolt (12) connecting lower arm to body
  1. Slacken bolt lower arm to body.
