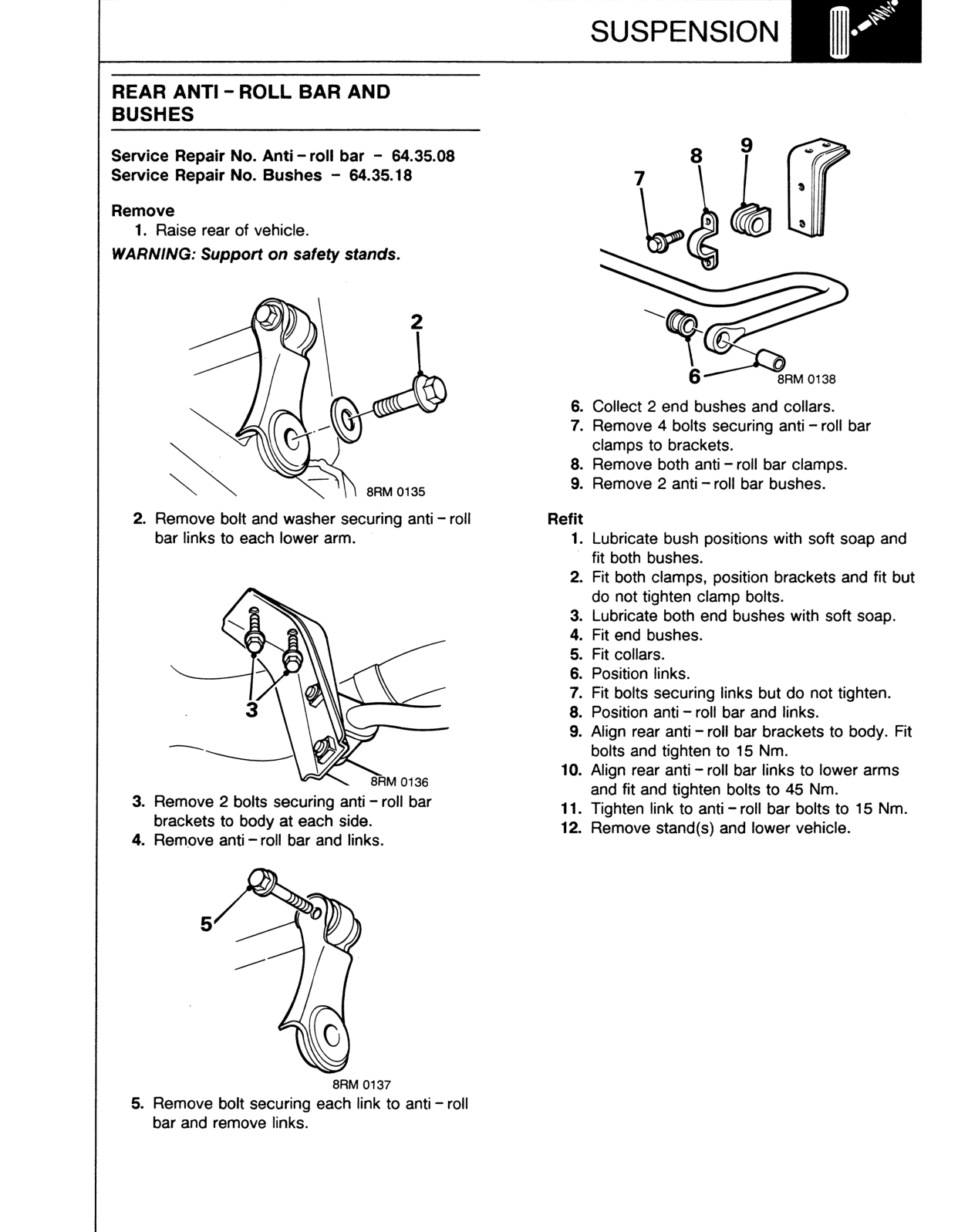

Service Repair No. Anti - roll bar – 64.35.08
Service Repair No. Bushes – 64.35.18

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

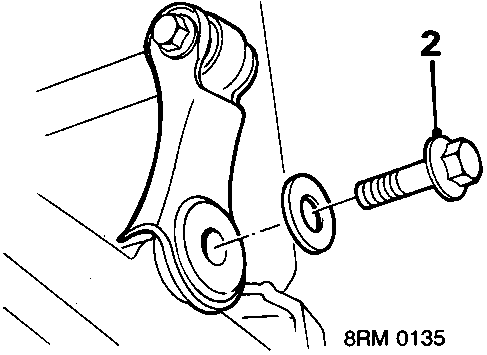

2. Remove bolt and washer securing anti - roll bar links to each lower arm.

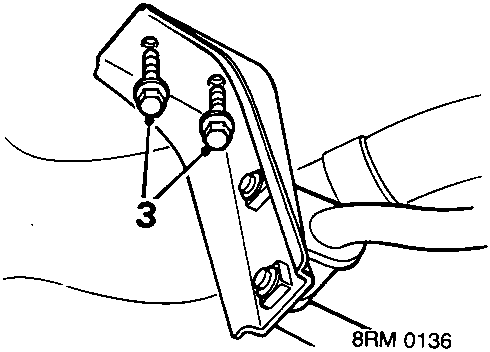

3. Remove 2 bolts securing anti - roll bar brackets to body at each side.
4. Remove anti - roll bar and links.

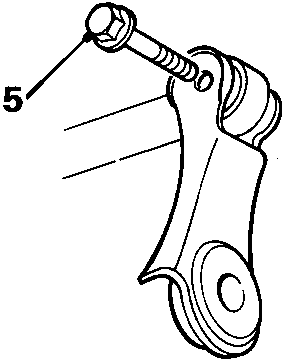

5. Remove bolt securing each link to anti - roll bar and remove links.

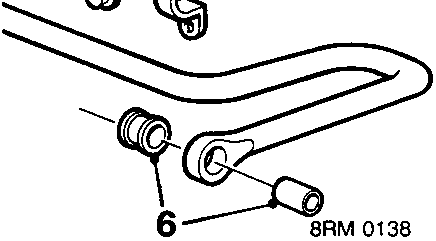

6. Collect 2 end bushes and collars.
7. Remove 4 bolts securing anti - roll bar clamps to brackets.
8. Remove both anti - roll bar clamps.
9. Remove 2 anti - roll bar bushes.

Refit

1. Lubricate bush positions with soft soap and fit both bushes.
2. Fit both clamps, position brackets and fit but do not tighten clamp bolts.
3. Lubricate both end bushes with soft soap.
4. Fit end bushes.
5. Fit collars.
6. Position links.
7. Fit bolts securing links but do not tighten.
8. Position anti - roll bar and links.
9. Align rear anti - roll bar brackets to body. Fit bolts and tighten to 15 Nm.
10. Align rear anti - roll bar links to lower arms and fit and tighten bolts to 45 Nm.
11. Tighten link to anti - roll bar bolts to 15 Nm.
12. Remove stand(s) and lower vehicle.
