Refit

14. Raise lower arm on jack to align lower arm and trailing arm. Fit, but do not tighten lower arm to trailing arm bolt.
15. Raise jack until suspension is in normal working position
16. Tighten lower arm to damper bolt to 45 Nm.
17. Tighten lower arm to trailing arm bolt to 45 Nm.
18. Tighten lower arm to body bolt to 45 Nm.
19. Position ABS sensor lead brackets to lower arm, fit bolts and tighten to 9 Nm.
20. Remove jack
21. Align anti - roll bar link to lower arm, fit bolt and tighten to 45 Nm.
22. Fit road wheel and tighten nuts to 100 Nm.
23. Remove stand(s) and lower vehicle.
24. Fit damper upper cover and luggage compartment side trim casing.

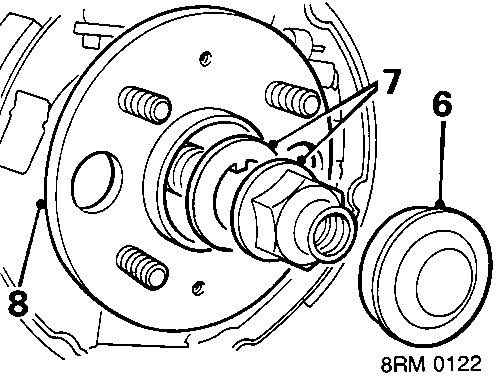

6. Remove hub cap.
7. Knock back staking and remove hub nut and washer. Discard nut.
8. Remove hub assembly from stub axle.

Refit

1. Clean hub and stub axle.
2. Lubricate seal running surface with grease.
3. Fit hub assembly to stub axle.
4. Fit washer and tighten new rear hub nut to 185 Nm.
5. Stake the nut and fit hub cap.
6. Clean brake drum and mating face.
7. Fit drum to hub and tighten screws.
8. Fit road wheel and tighten nuts to 100 Nm.
9. Remove stand(s) and lower vehicle.
10. Apply foot brake several times and then check handbrake.

REAR HUB BEARING
- Models with rear drum brakes

Service Repair No. 64.15.14

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

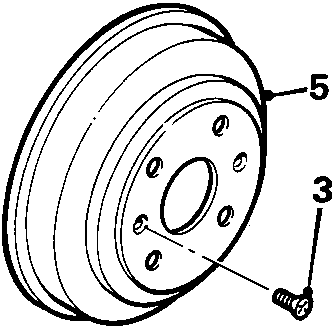

3. Remove 2 screws securing brake drum to hub.
4. Release handbrake.
5. Remove brake drum.

Note: If brake shoes are holding brake drum, release the self - adjust mechanism, see MAINTENANCE

REAR HUB BEARING
- Models with rear disc brakes

Service Repair No. 64.15.14

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

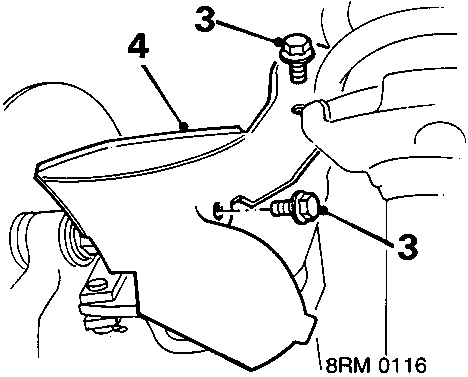

3. Remove 2 bolts dust shield to caliper.
4. Remove dust shield.
