Refit

185 Nm

39 Nm

100 Nm

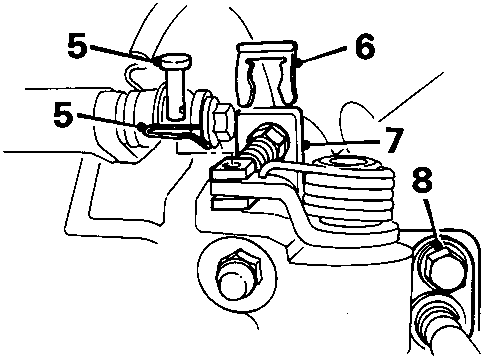

5. Remove 'R' clip and clevis pin from handbrake cable.
6. Remove handbrake outer cable retaining clip.
7. Disconnect handbrake cable from bracket and trailing arm.
8. Remove bolt brake hose to trailing arm.

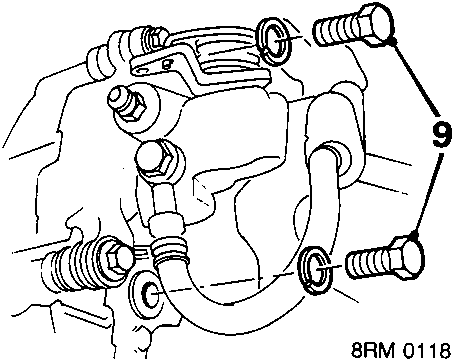

9. Remove 2 bolts caliper to stub axle.
10. Disconnect caliper from stub axle and tie caliper aside.

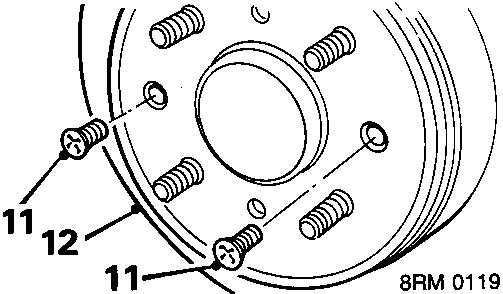

11. Remove 2 brake disc screws.
12. Remove brake disc from hub.

13. Remove hub cap.

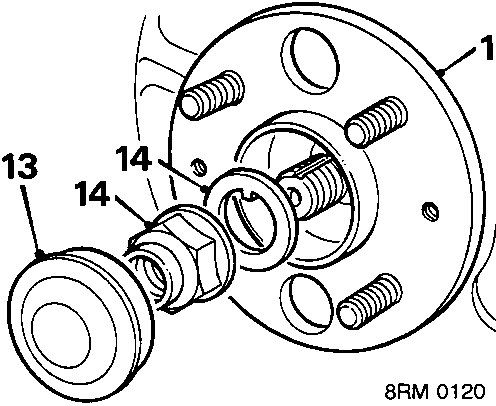

14. Knock back staking and remove hub nut and washer. Discard hub nut.
15. Remove hub assembly from stub axle.

Refit

1. Clean hub and stub axle.
2. Lubricate seal running surface with grease.
3. Fit hub assembly to stub axle.
4. Fit washer and tighten new rear hub nut to 185 Nm.
5. Stake the nut and fit hub cap.
6. Clean disc and mating face.
7. Fit disc to hub and tighten screws.
8. Clean caliper and mating faces.
9. Fit caliper to stub axle and tighten bolts to 39 Nm.
10. Fit brake hose to trailing arm and tighten bolt.
11. Position handbrake cable to bracket and trailing arm, fit cable retaining clip.
12. Fit handbrake cable clevis pin and retain with 'R' clip.
13. Fit caliper dust shield and tighten screws.
14. Fit road wheel and tighten nuts to 100 Nm.
15. Remove stand(s) and lower vehicle.
