Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual20 · Suspension
20 · Steering & suspension

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
SuspensionRemove

Service Repair No. Spring 64.20.01
Service Repair No. Damper 64.30.02

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Diagram showing lower arm, trailing arm, and bolt labeled 4 and 3 (8RM 0123)

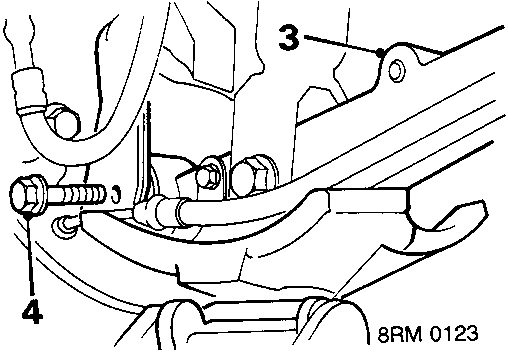

  1. Support lower arm on jack, against spring tension.
  2. Remove bolt, lower arm to trailing arm, then remove jack.
Diagram showing ABS harness bolts and damper bolt labeled 5 and 6 (8RM 0124A)

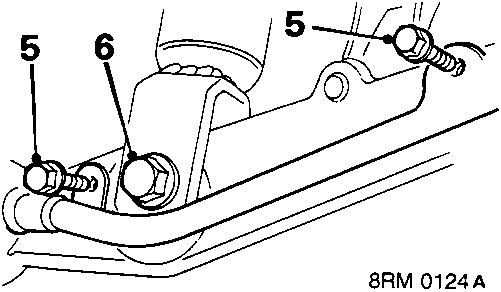

  1. ABS: Remove 2 bolts securing ABS harness to lower arm.
  2. Remove bolt, lower arm to damper.
Diagram showing anti-roll bar bolt and washer labeled 7 (8RM 0125)

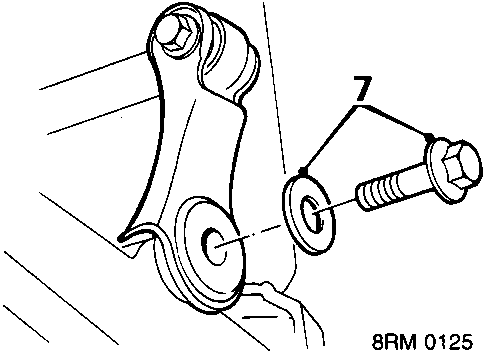

  1. Remove bolt and washer, lower arm to anti - roll bar (where fitted).
Diagram showing lower arm release from trailing arm with bolt labeled 8 (8RM 0126A)

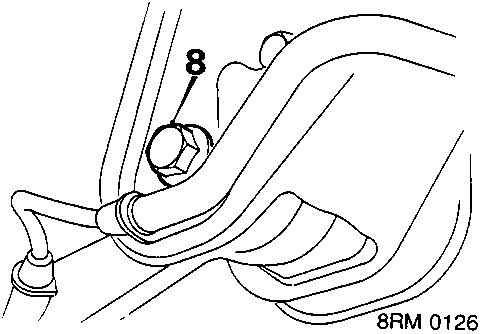

  1. Slacken bolt, lower arm to body and release lower arm from trailing arm.
Diagram showing shock absorber upper cover, nuts, and damper assembly labeled 10, 11, 12 (8RM 0127A)

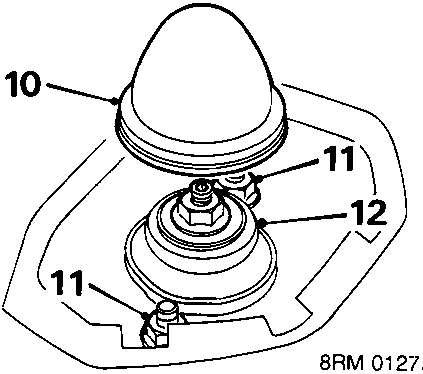

  1. Remove luggage compartment side trim casing.
  2. Remove shock absorber upper cover.
  3. Remove 2 nuts damper top mounting to body.
  4. Remove damper assembly.
