SuspensionRemove

Service Repair No. 64.35.54

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

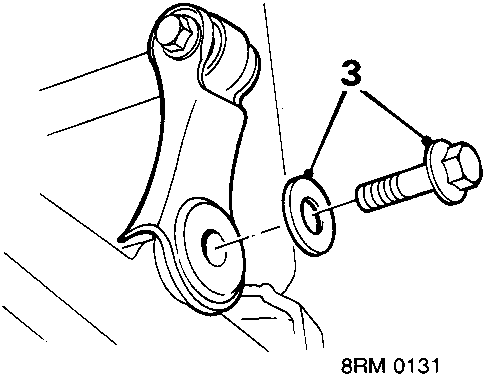

Diagram showing bolt and washer anti-roll bar link to lower arm, callout 3
  1. Remove bolt and washer anti – roll bar link to lower arm.

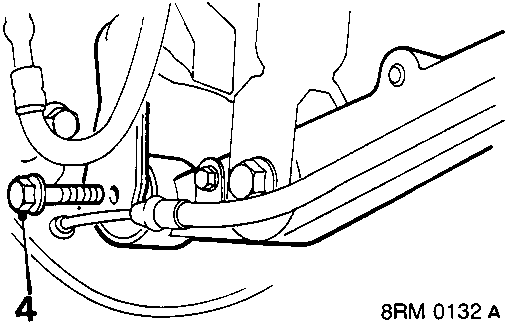

Diagram showing bolt lower arm to trailing arm, callout 4
  1. Remove bolt lower arm to trailing arm.

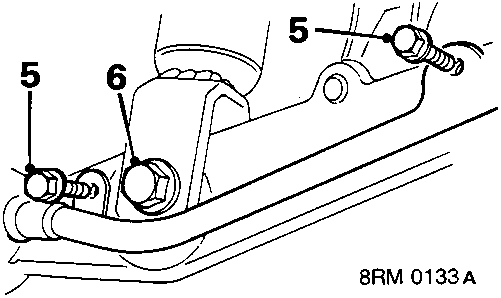

Diagram showing bolts securing ABS harness to lower arm (callout 5) and bolt lower arm to damper (callout 6)
  1. ABS: Remove 2 bolts securing ABS harness to lower arm.
  2. Remove bolt lower arm to damper.

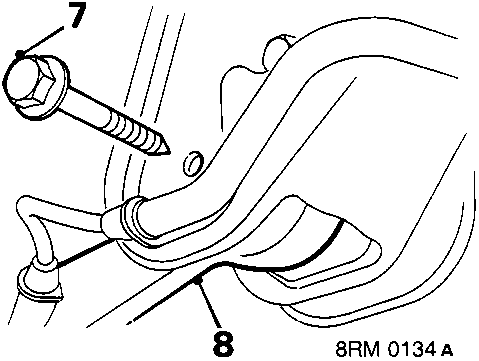

Diagram showing bolt lower arm to body (callout 7) and release of arm from body (callout 8)
  1. Remove bolt lower arm to body.
  2. Release arm from body.
  3. Remove arm from trailing arm and damper.

Refit

  1. Fit arm to body.
  2. Connect arm to damper.
  3. Fit but do not tighten bolts securing arm to body, trailing arm and damper.
  4. Support lower arm on jack.
  5. Raise jack until suspension is in normal working position.
  6. Tighten bolt lower arm to trailing arm to 45 Nm.
  7. Tighten bolt lower arm to damper to 45 Nm.
  8. Tighten bolt lower arm to body to 45 Nm.
  9. Tighten bolt anti – roll bar link to lower arm to 45 Nm.
  10. ABS: Position ABS harness, fit bolts and tighten to 9 Nm.
  11. Fit road wheel and tighten nuts to 100 Nm.
  12. Remove stand(s) and lower vehicle.

REAR UPPER ARM

Service Repair No. 64.35.60

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Support trailing arm on jack at normal trim height.
