Vauxhall Astra J19 · Transmission/Transaxle
19 · Transmission

5th Driven Gear Removal (Manual Transmission - F17-5)

Make
Vauxhall
Model
Astra J
Section
Manual Transmission - F17-5 › Repair Instructions › 5th Driven Gear Removal
Transmission/Transaxle5th Driven Gear Removal

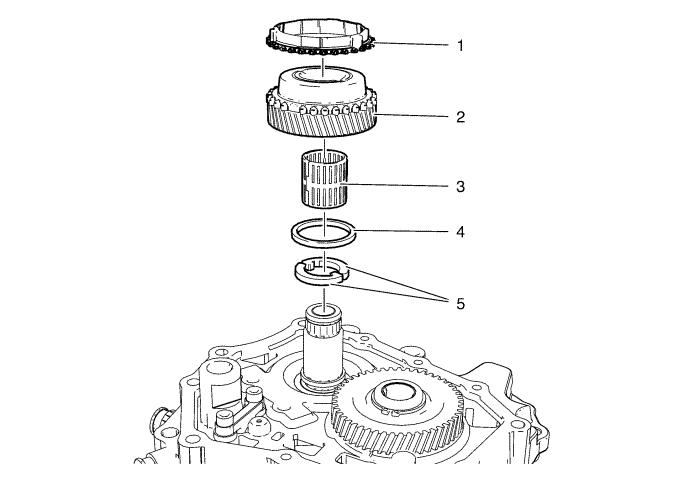

5th Driven Gear Removal



2192335




Callout
Component Name

1
5th Driven Gear Blocking Ring

2
5th Driven Gear

3
5th Driven Gear Bearing

4
5th Driven Gear Retainer Ring

5
Thrust Washers (Qty: 2)
