Front Differential Assembly Removal (Manual Transmission - F17-5)

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - F17-5 › Repair Instructions › Front Differential Assembly Removal

Transmission/TransaxleFront Differential Assembly Removal

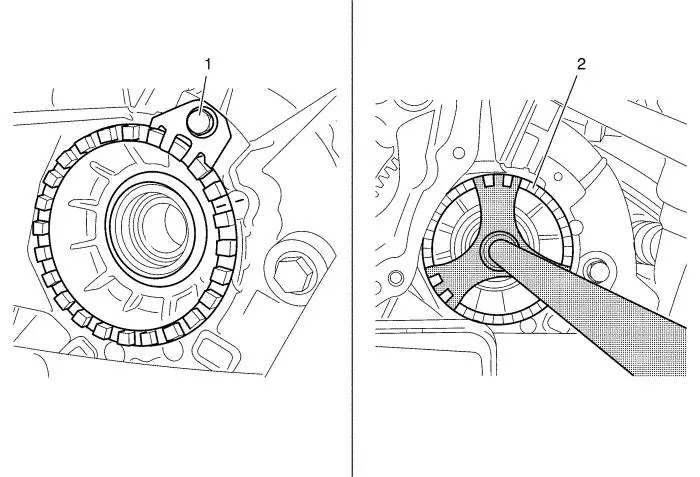

Front Differential Assembly Removal Table 1: Front Differential Bearing Adjuster Lock and Cup Removal Table 2: Front Differential Removal Front Differential Bearing Adjuster Lock and Cup Removal Front Differential Bearing Adjuster Lock and Cup Removal Callout Component Name 1 Front Differential Bearing Adjuster Lock Bolt Procedure Mark position of front differential bearing cup and remove the front differential bearing adjuster lock bolt in conjunction with front differential bearing adjuster lock. 2 Front Differential Bearing Adjuster Cup Special Tools DT-447   Remover / Installer For equivalent regional tools, refer to Special Tools .   Front Differential Removal Front Differential Removal Callout Component Name 1 Front Differential
