Transmission Case Installation (Manual Transmission - F17-5)

Make: Vauxhall
Model: Astra J
Section: Manual Transmission - F17-5 › Repair Instructions › Transmission Case Installation

Transmission/TransaxleTransmission Case Installation

Transmission Case Installation

DT-6155 Guide Pins

For equivalent regional tools, refer to Special Tools .

1.	Clean all sealing surfaces.

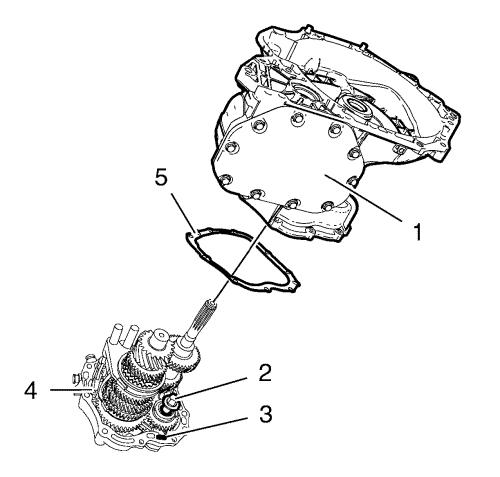

Note: Watch out for the magnet (3) and the distance washer (2) during the installation procedure and install with grease.

2.	Install a NEW transmission case gasket (5).

3.	Install the DT-6155 guide pins .

4.	Install the transmission case (4) to the transmission housing (1).

Caution: Refer to Fastener Caution .

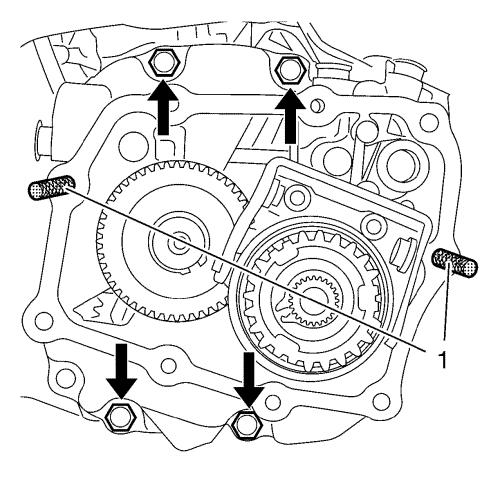

5.	Install the 4 transmission case bolts (arrows) and tighten to 22 N·m (16 lb ft) .

6.	Remove the DT-6155 guide pins (1).
