Main Shaft Disassemble - F 17 (Manual Transmission - F17-5)

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - F17-5 › Repair Instructions › Main Shaft Disassemble - F 17

Transmission/TransaxleMain Shaft Disassemble - F 17

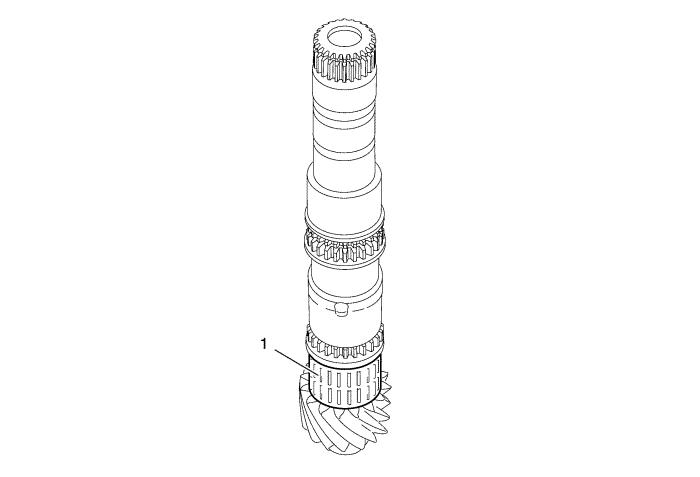

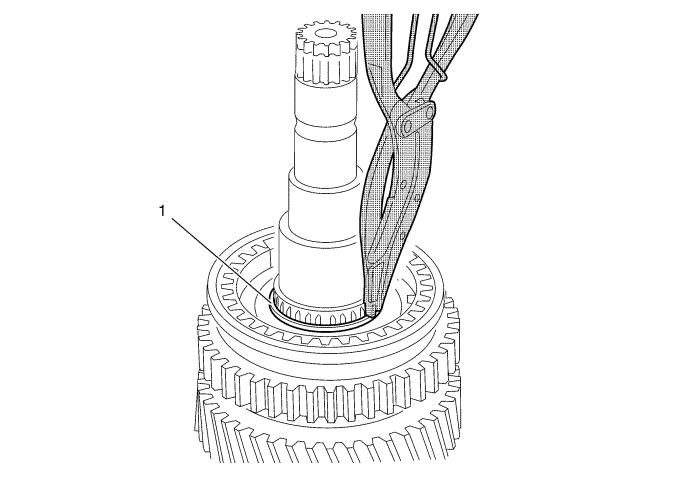

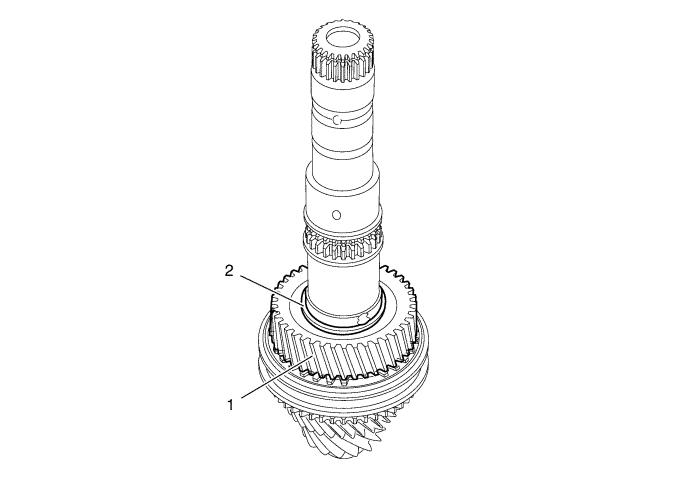

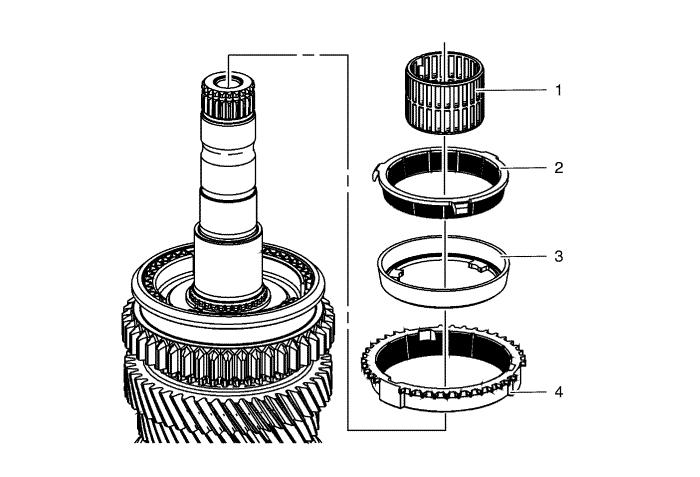

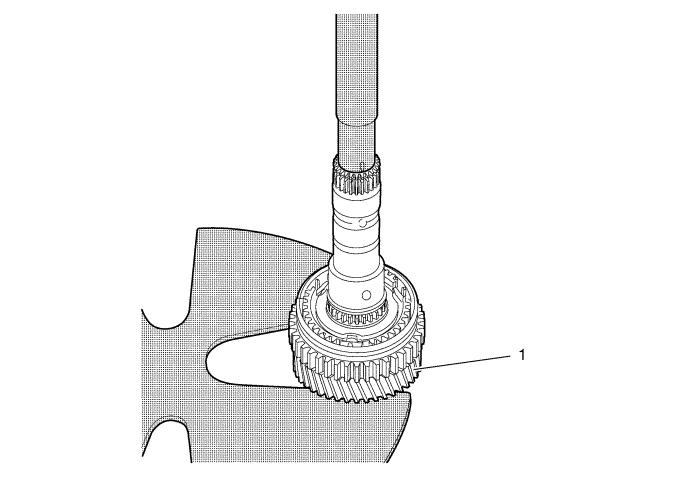

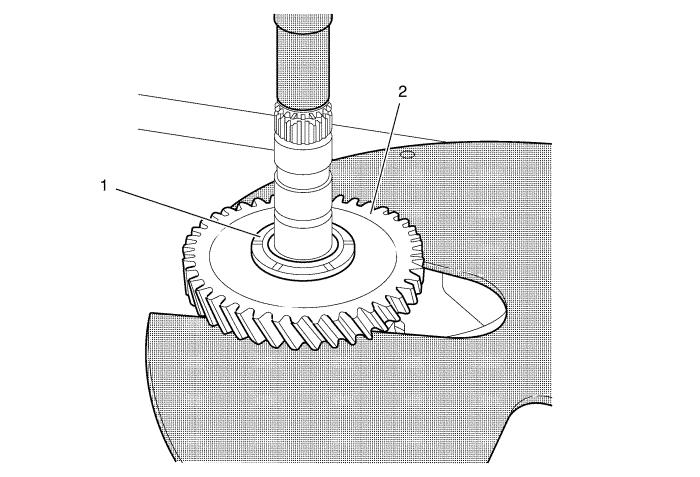

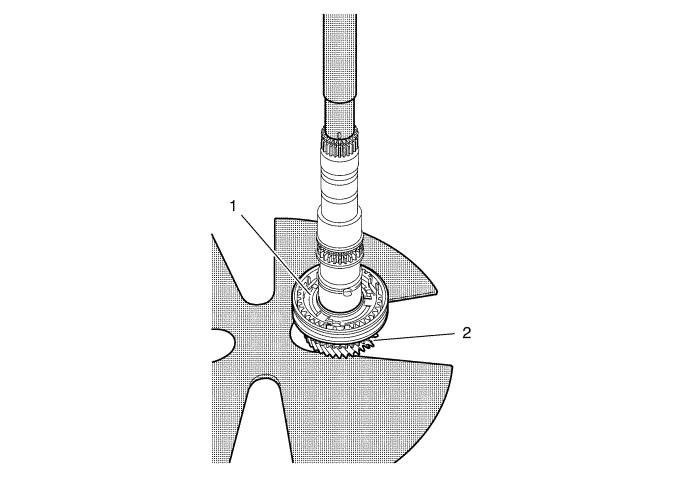

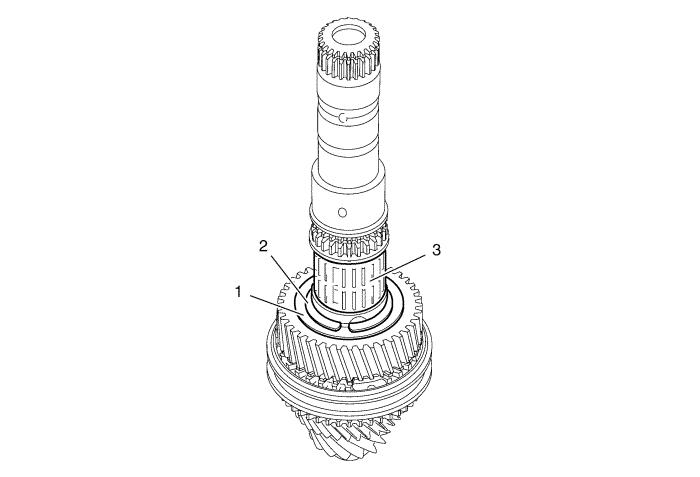

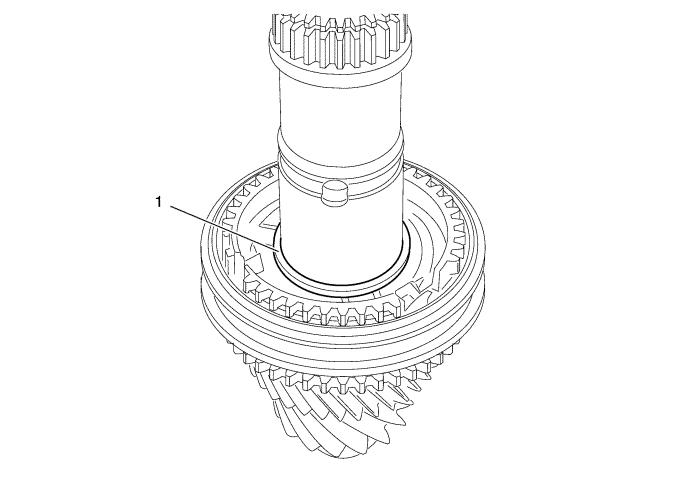

Main Shaft Disassemble Table 1: 1st Gear Removal Table 2: 1st Gear Blocking Rings Removal Table 3: 1st and 2nd Gear Synchronizer Hub Retaining Ring Removal Table 4: 1st and 2nd Gear Synchronizer Hub and 2nd Gear Removal Table 5: 2nd Gear Bearing Removal Table 6: 3rd Gear Removal Table 7: 3rd and 4th Gear Synchronizer Hub Retaining Ring Removal Table 8: 3rd and 4th Gear Thrust Washer Removal Table 9: 3rd and 4th Gear Synchronizer Hub and 4th Gear Removal Table 10: 4th Gear Bearing Removal 1st Gear Removal 1st Gear Removal Callout Component Name Preliminary Procedure A hydraulic press is required to complete procedure. Prepare hydraulic press for procedure. 1 1st Gear Thrust Washer Special Tools •  DT-307-B   Remover Plate •  DT-736   Clutch Arbor 2 1st Gear   1st Gear Blocking Rings Removal 1st Gear Blocking Rings Removal Callout Component Name 1 1st Gear Bearing 2 1st Gear Inner Blocking Ring 3 1st Gear Intermediate Blocking Ring 4 1st Gear Outer Blocking Ring   1st and 2nd Gear Synchronizer Hub Retaining Ring Removal 1st and 2nd Gear Synchronizer Hub Retaining Ring Removal Callout Component Name 1 1st and 2nd Gear Synchronizer Hub Retaining Ring Special Tools GE-8059   Snap Ring Pliers   1st and 2nd Gear Synchronizer Hub and 2nd Gear Removal 1st and 2nd Gear Synchronizer Hub and 2nd Gear Removal Callout Component Name Preliminary Procedure A hydraulic press is required to complete procedure. Prepare hydraulic press for procedure. 1 2nd Gear Special Tools •  DT-307-B   Remover Plate •  DT-736   Clutch Arbor   2nd Gear Bearing Removal 2nd Gear Bearing Removal Callout Component Name 1 1st and 2nd Gear Synchronizer Hub Retaining Ring 2 2nd and 3rd Gear Thrust Washer 3 2nd Gear Bearing   3rd Gear Removal 3rd Gear Removal Callout Component Name 1 3rd Gear 2 3rd Gear Bearing   3rd and 4th Gear Synchronizer Hub Retaining Ring Removal 3rd and 4th Gear Synchronizer Hub Retaining Ring Removal Callout Component Name 1 3rd and 4th Gear Synchronizer Hub Retaining Special Tools GE-8059   Snap Ring Pliers   3rd and 4th Gear Thrust Washer Removal 3rd and 4th Gear Thrust Washer Removal Callout Component Name 1 3rd and 4th Gear Synchronizer Hub Retaining Ring Special Tools GE-8059   Snap Ring Pliers   3rd and 4th Gear Synchronizer Hub and 4th Gear Removal 3rd and 4th Gear Synchronizer Hub and 4th Gear Removal Callout Component Name Preliminary Procedure A hydraulic press is required to complete procedure. Prepare hydraulic press for procedure. 1 3rd and 4th Gear Synchronizer Hub Special Tools •  DT-307-B   Remover Plate •  DT-736   Clutch Arbor 2 4th Gear   4th Gear Bearing Removal 4th Gear Bearing Removal Callout Component Name 1 4th Gear Bearing
