Transmission Rear Mount Replacement (Manual Transmission - F17-5)

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - F17-5 › Repair Instructions › Transmission Rear Mount Replacement

Transmission/TransaxleTransmission Rear Mount Replacement

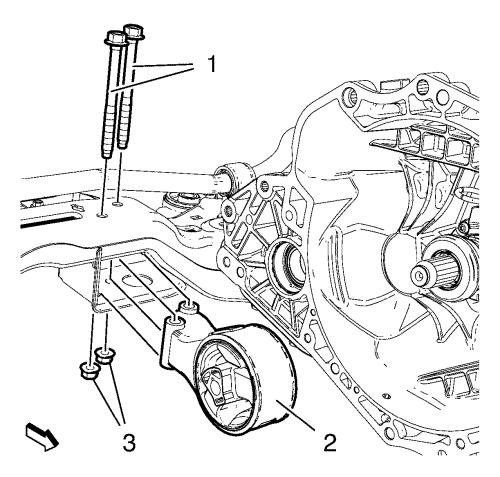

Transmission Rear Mount Replacement Removal Procedure 1. Remove steering gear. Refer to Steering Gear Replacement . 2. Remove transmission rear mount bracket. Refer to Transmission Mount Bracket Replacement - Rear .            3. Remove 2 transmission rear mount nuts (3) and 2 transmission rear mount bolts (1). 4. Remove transmission rear mount (2). Installation Procedure            1. Install transmission rear mount (2). 2. Install 2 transmission rear mount bolts (1). Caution: Refer to Fastener Caution . 3. Install 2 transmission rear mount nuts (3) and tighten to 110 N·m (82 lb ft) . 4. Install transmission rear mount bracket. Refer to Transmission Mount Bracket Replacement - Rear . 5. Install steering gear. Refer to Steering Gear Replacement .
