Transmission Control Replacement (Manual Transmission - F17-5)

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - F17-5 › Repair Instructions › Transmission Control Replacement

Transmission/TransaxleTransmission Control Replacement

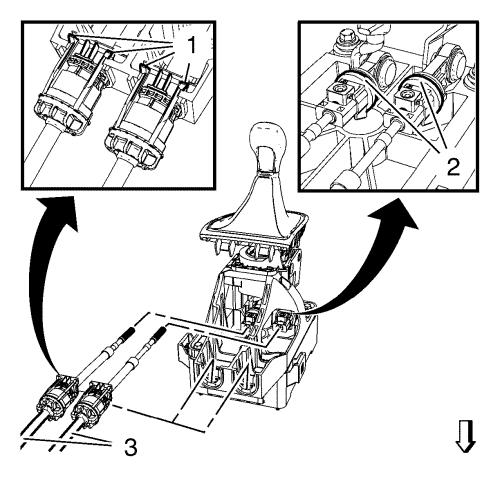

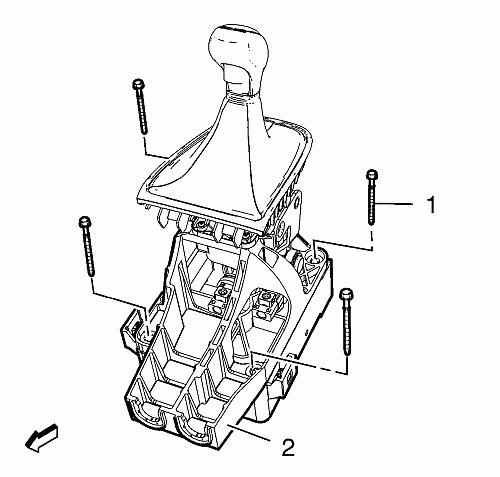

Transmission Control Replacement Removal Procedure 1. Remove front floor console. Refer to Front Floor Console Replacement .            2. Unlock shift lever and selector lever cable adjust locks (2). 3. Clip shift lever and selector lever cable (3) out of transmission control lever housing (1).            4. Remove 4 transmission control lever bolts (1). 5. Remove transmission control lever (2). Installation Procedure            1. Install NEW transmission control lever (2). Caution: Refer to Fastener Caution . 2. Install 4 transmission control lever bolts (1) and tighten to 8 N·m (71 lb in) .            Note:  Do not lock yet. 3. Slide shift lever and selector lever cable into shift lever and selector lever cable adjust locks (2). 4. Clip shift lever and selector lever cable (3) into transmission control lever housing (1). 5. Adjust shift lever and selector lever cable. Refer to Manual Transmission Shift Lever and Selector Lever Cable Adjustment .
