Transmission Case Removal (Manual Transmission - F17-5)

Make

Vauxhall

Model

Astra J

Section

Manual Transmission - F17-5 › Repair Instructions › Transmission Case Removal

Transmission/TransaxleTransmission Case Removal

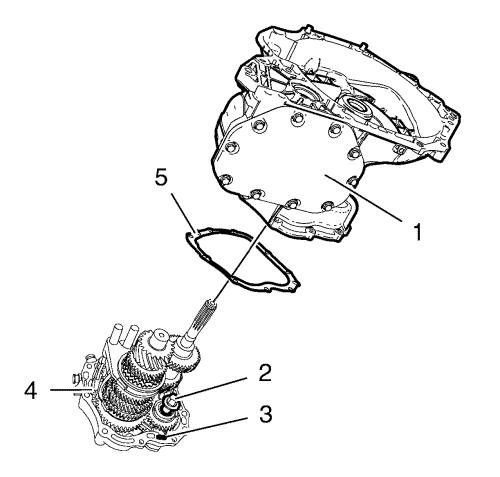

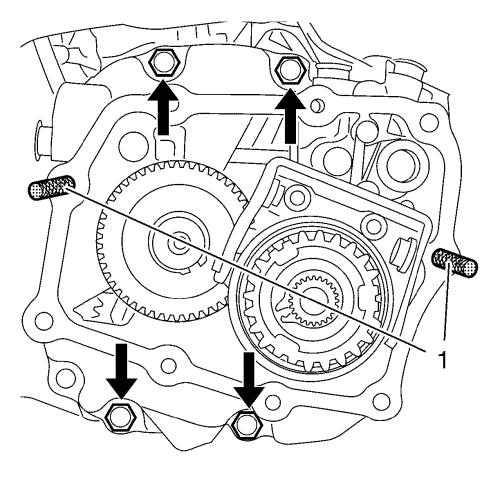

Transmission Case Removal Special Tools DT-6155   Guide Pins For equivalent regional tools, refer to Special Tools .            1. Install the DT-6155   guide pins  (1). 2. Remove the 4 transmission case bolts (arrows).            Note:  Watch out for the magnet (3) and the distance washer (2) during removal procedure. 3. Remove the transmission case (4) out of the transmission housing (1). 4. Remove the transmission case gasket (5).
