Transmission/TransaxleHolding Fixture Installation
Holding Fixture Installation
Special Tools
| • |
DT-113-2-A
Holding Fixture Base |
For equivalent regional tools, refer to
Special Tools .
| 1. |

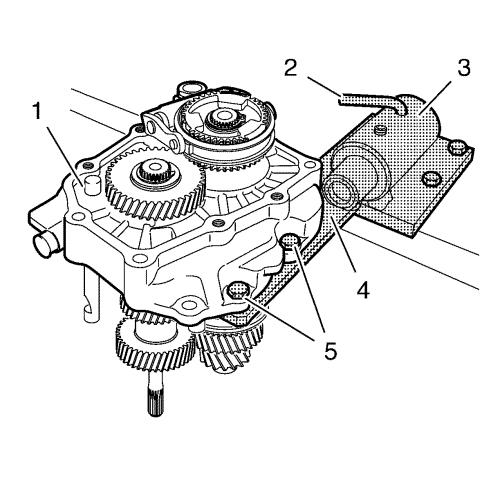

Install the transmission case
(1) to the DT-552 installer (4) and fix with two
bolts (5). |
|
Note: Shift the
transmission into reverse gear.
|
|
Note: Ensure the
DT-113-2-A holding fixture base is mounted to a
bench that is properly supported and will support the weight of the
transmission assembly without tipping.
|
| 2. |
Install the DT-552
installer assembled with the transmission case to
DT-113-2-A holding fixture base (3) and lock with
the lock pin (2). |
|
|
