Adjustment

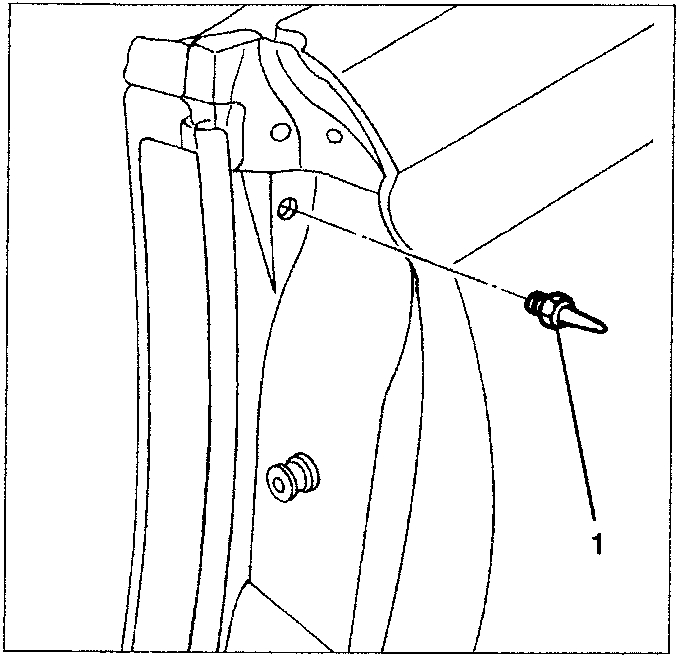

1. Slacken and remove the striker pin

Refit, reversing the sequence followed for removal.

ADJUSTMENT

The striker may only be adjusted after checking that the door is perfectly aligned.

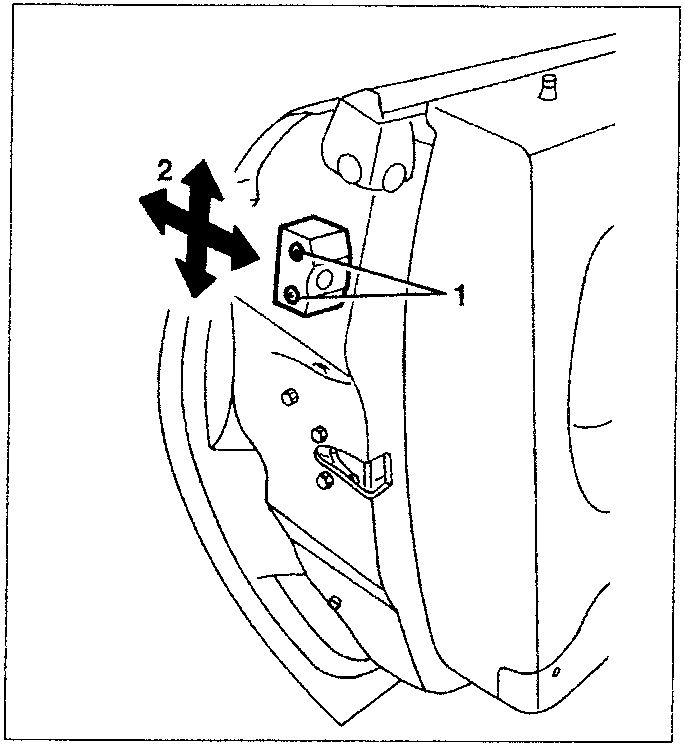

1. Loosen the two block screws,
2. Change the position of the striker block to obtain perfect mating with the striker pin which is in a fixed position. Then tighten the screws.

Check for perfect mating between the lock and the striker, adjust appropriately if necessary (see specific paragraphs).

LOCK STRIKER

REMOVAL/REFITTING

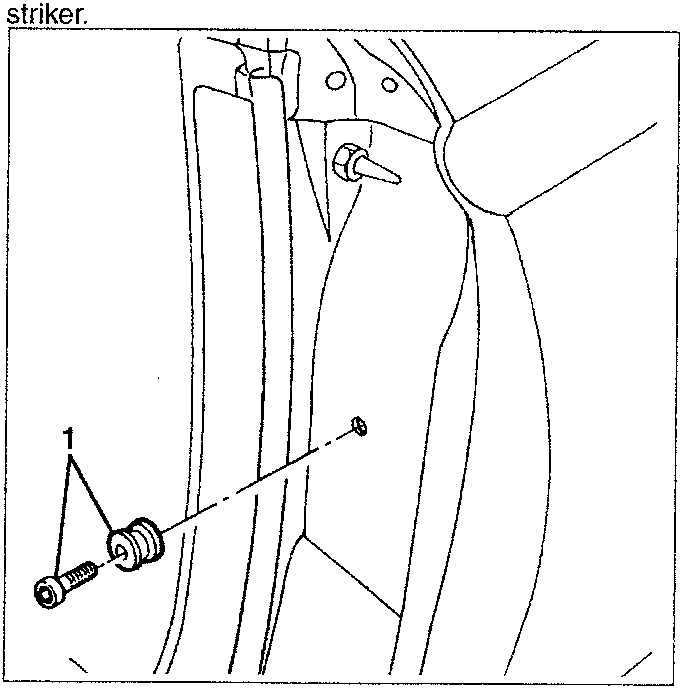

1. Slacken the centre screw and remove the lock striker.

Refit, reversing the sequence followed for removal.

ADJUSTMENT

The striker lock may be adjusted only after checking the perfect alignment of the door and mating with the door striker.

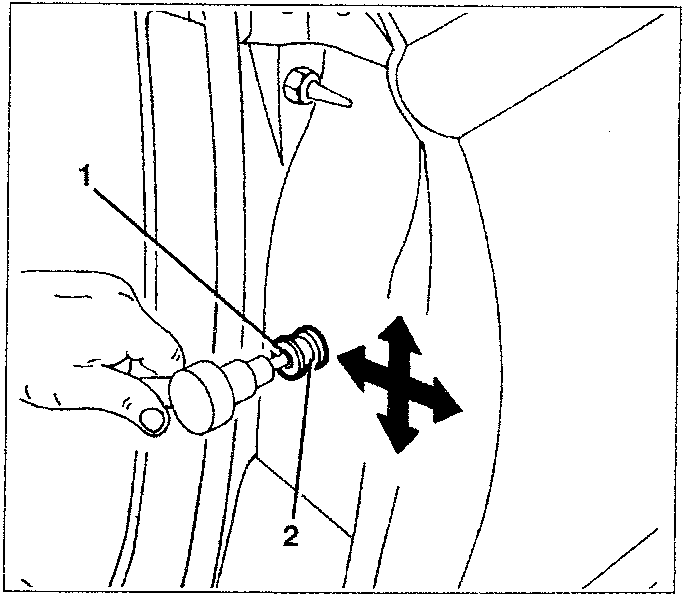

1. Loosen the striker screw.
2. Change the position of the striker to obtain perfect mating with the door closing device. Then tighten the screw.

NOTE: Direct the notches on the striker surface towards the inside of the car.
