Window adjustment

WINDOW ADJUSTMENT

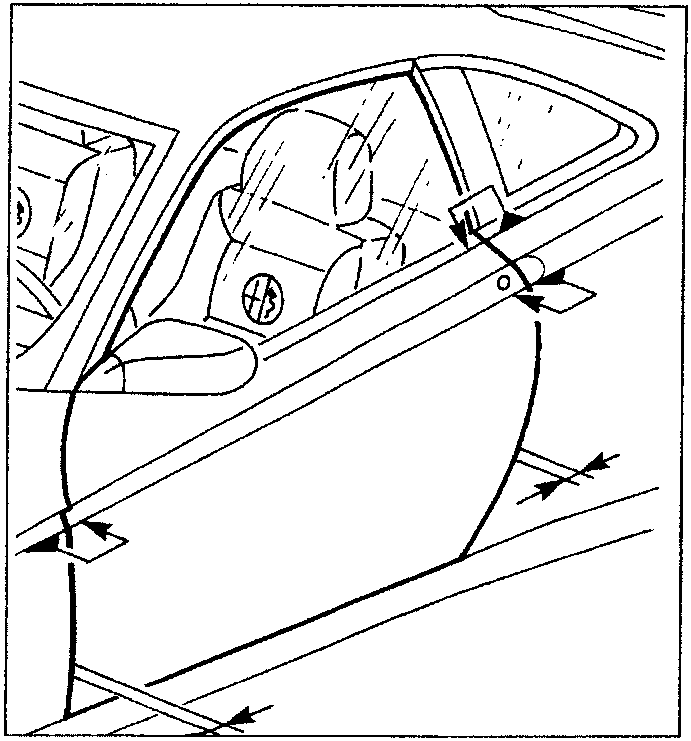

Adjustment of the glass position is fundamental in ensuring correct mating of the door in its surround and perfect air and water tightness.

The absence of the glass contour frame in fact, imposes perfect adjustment of the mating between glass and seals, with the door closed and the window up, to avoid wind noise and leaks.

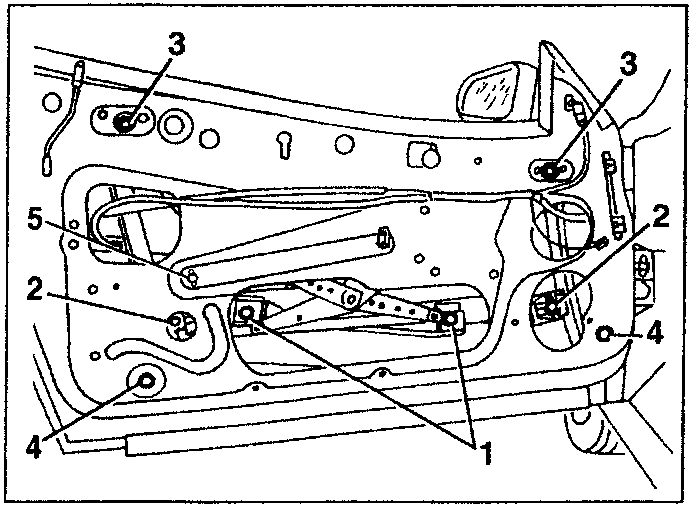

The window adjustment points are the following:

1. Glass fastening points on lower window winder rod (longitudinal adjustment).
2. Mating of runners - glass (crossways and partly vertical adjustment).
3. Runner stops (vertical adjustment).
4. Lower guide connection points (crossways adjustment). These adjustment points should be taken to the nominal dimension and serve solely for small final adjustments of the glass transversal position.
5. Window winder pad anchor point (adjustment of window up/down trajectory).

NOTE: before adjusting the window, disable the up-down device as described below.

• remove the door panel and interior trim (see specific paragraph).

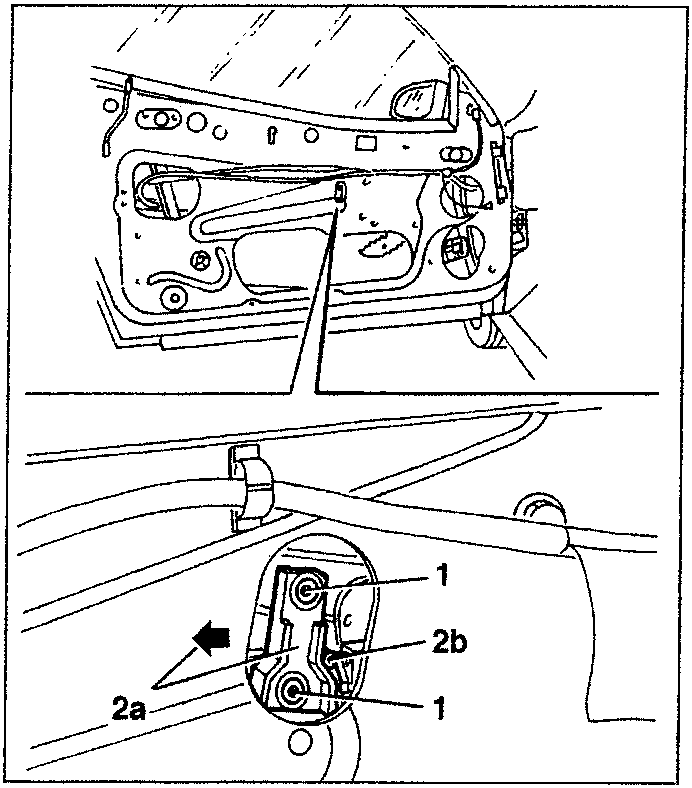

1. Loosen the cam retaining bolts.
2. Move cam (2a) away from microswitch (2b) and secure.

– Once adjustment is complete, adjust the up-down device (see specific paragraph).

Checks and inspections

Before carrying out the window adjustment procedure it is necessary to carry out certain checks to locate the cause of malfunctioning.

A) Chck the up-down device is correctly adjusted (Group 70 - Body - Doors - UP-DOWN device - Adjustment).

B) Check the correct alignment of the door. For adjustment refer to Repair Manual - Group 70 - Body - Doors - Door Complete - Adjustment).

C) Additionally for Spider: check the correct mating between the three sections of hood seal (A), between
