WINDOW WINDING DEVICE

REMOVAL/REFITTING

Remove the window (see specific paragraph)

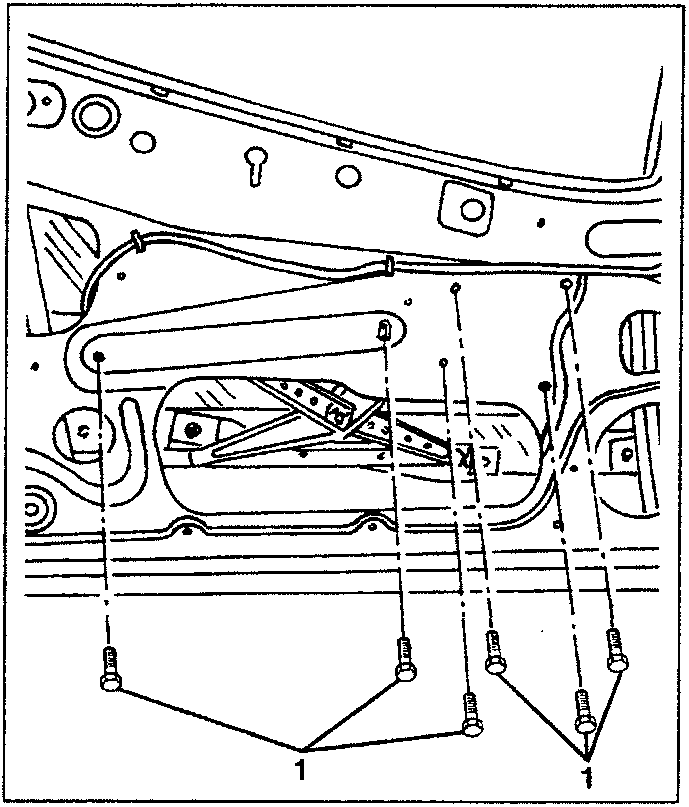

  1. Slacken the six screws fastening the device.
Diagram showing the window winding device with six screws and electrical connections labeled 1a and 1b

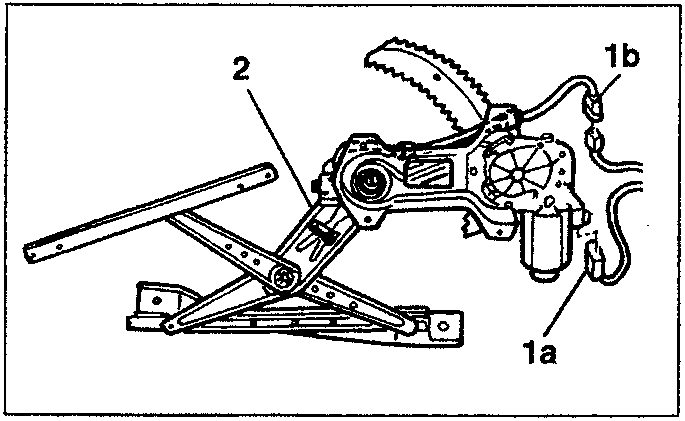

  1. Disconnect electric window device electrical connection (1a) and up-down device electrical connection (1b).
  2. Remove the window winding device.
Diagram showing the window winding device with parts labeled 1a, 1b, and 2

Refit the window winding device reversing the sequence followed for removal.

NOTE: Before refitting the door interior trim and door panel, adjust the up-down device (see specific paragraph).

WINDOW WIPER SEAL

REMOVAL/REFITTING

  • Remove the door panel (see specific paragraph)

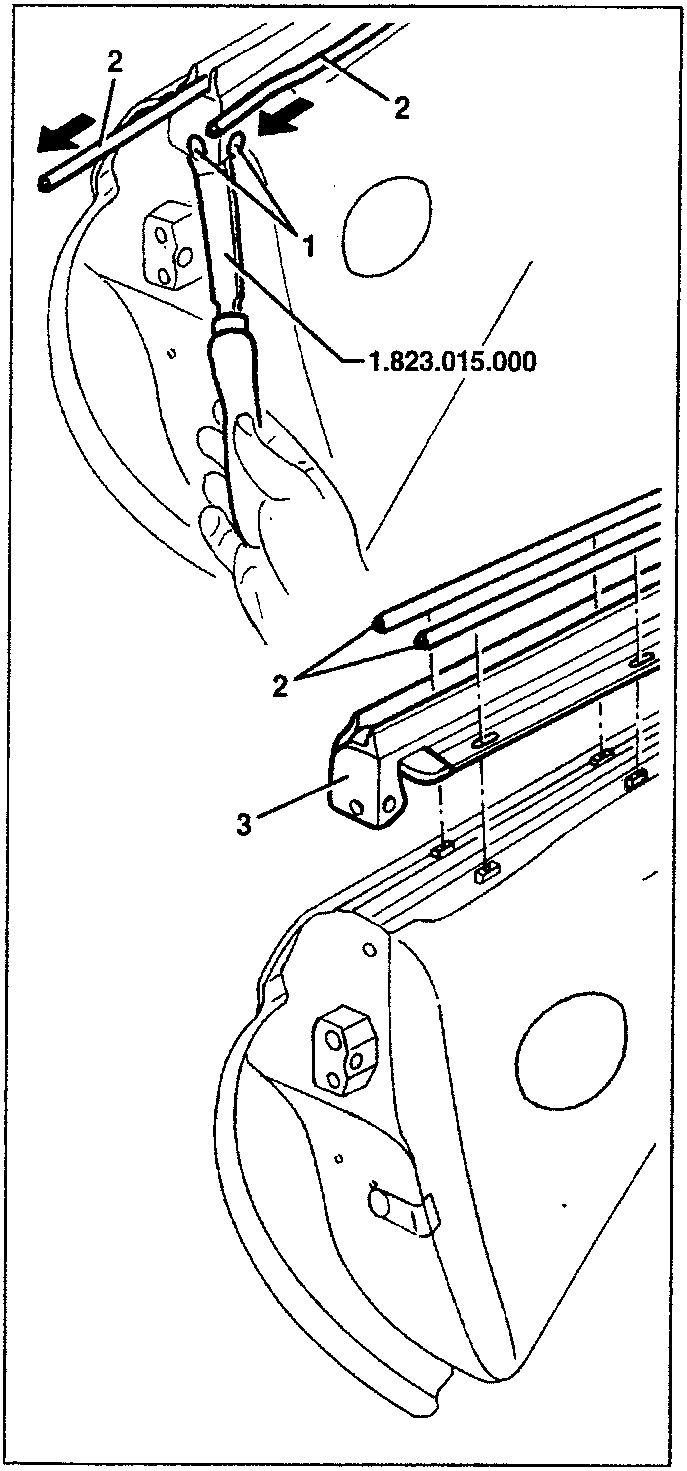

  1. Using tool 1.823.015.000 remove the two fastening buttons.
  2. Withdraw the retainer moulding.
  3. Retrieve the seal.
Diagram showing the window wiper seal removal with tool 1.823.015.000 and parts labeled 1, 2, and 3

When refitting, press the retainer moulding onto the catches.
